Power Output Panel

Single-Phase 400A-600MCM

MTC 6001 OESHKvB

Supporting up to 400 Amps per panel and 600 MCM cable lugs on the wireway side, Roam's MTC® 6001 OESHKvB series ("v" = Voltage Code) of Power Output Panels provides a rugged and cost-effective exterior connection point for high-capacity external power loads.



Roam's 400A-600MCM Power Output Panels use E1016 (J-Series/16 Series) Female Cam-Lok* connectors supporting up to 400A, along with bus bar extensions that support up to two 600 MCM cable lugs per connector. Roam's 400A-600MCM panels are constructed from powder coated aluminum and are also built with a dedicated wire chase (wireway) in the back to allow safe cable entry (via conduit) from the bottom.



The standard in safety and outdoor reliability, Roam's line of Power Output Panels makes connecting building (line) power to external or internal loads fast, easy, and most importantly—safe.



Like the rest of Roam's line of Power Output Panels (also known as Outlet Panels, Docking Stations, or Tap Boxes), the MTC 6001 OESHKvB series offers a safe, secure power output connection point for external loads such as lighting, mobile equipment, booths, test load banks, or entertainment venue power. The MTC 6001 OESHKvB line is part of Roam's UL Listed (US & Canada) series of single-phase Power Output Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.

• Bottom conduit access via rear wireway
• Corrosion-resistant powder coating
• UV-resistant four color labels
• Built to NEMA 3R standard
• Internal and external grounding studs
• Four Female E1016 Cam-Lock connectors

• Single-phase power, at up to 400A
• Wireway side accepts up to 600MCM cable
• 240 VAC, 480 VAC, & 600 VAC rated panels
• Spot-welded aluminum construction
• Custom labels & configurations available
• Brown-Orange-Yellow connectors at 480VAC

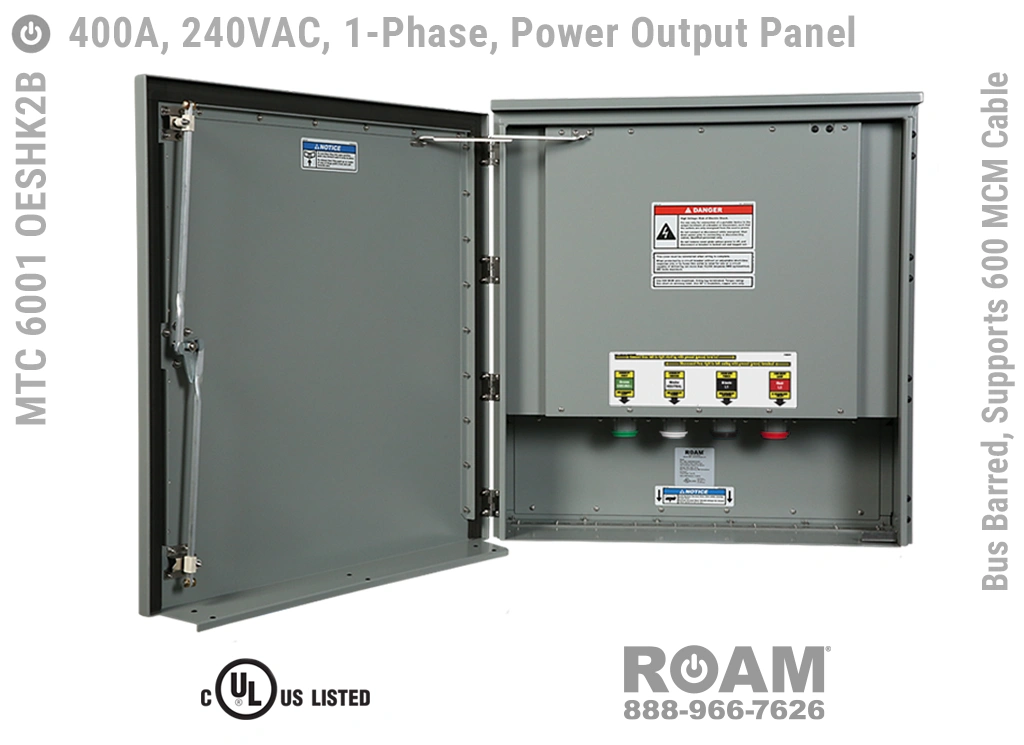

MTC 6001 OESHK2B
MTC 6001 OESHK2B - 400A/240VAC - 1-Phase - Power Output Panel - Connection Panel - Tap Box - Docking Station - Bus Barred - Up to 600MCM Cable - Front View - Door Open - Single-Phase - Power Output Interface Box - 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - 400A - Door Open - Showing E1016 (J-Series/16-Series) Female Cam-Lok Connectors - Cam-Lock - MTC6001OESHK2B - UL/cUL Listed

MTC 6001 OESHK2B - 400A/240VAC

Single-Phase - Power Output Panel - Open

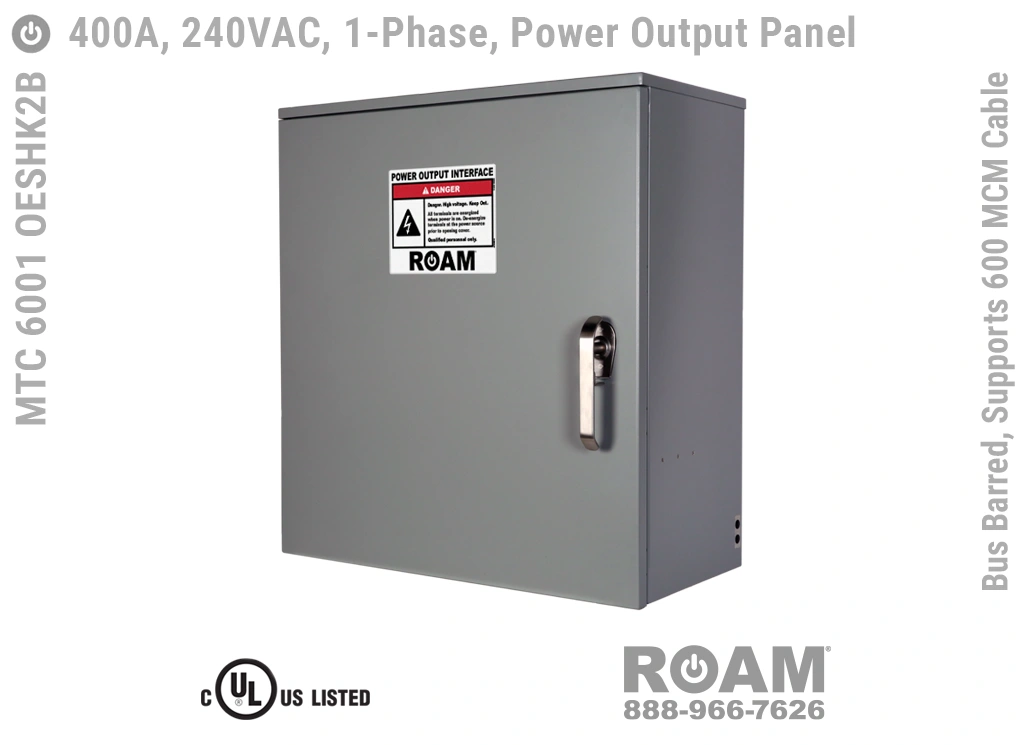

MTC 6001 OESHK2B
MTC 6001 OESHK2B - 400A/240VAC - 1-Phase - Power Output Panel - Connection Panel - Tap Box - Docking Station - Bus Barred - Up to 600MCM Cable - Front View - Door Closed - Single-Phase - Power Output Interface Box - 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - 400A - Door Open - Showing E1016 (J-Series/16-Series) Female Cam-Lok Connectors - Cam-Lock - MTC6001OESHK2B - UL/cUL Listed

MTC 6001 OESHK2B - 400A/240VAC

Single-Phase - Power Output Panel - Closed

Connections

Roam's MTC 6001 OESHKvB 400 Amp-600MCM Power Output Panels accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the output cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars. Note that connectors are rotated by 90° from normal front facing orientation in this panel.

Voltages up to 600VAC

Roam offers the MTC 6001 OESHKvB Power Output Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 OESHK2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 OESHK4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 OESHK6B. All of the 400A-600MCM panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

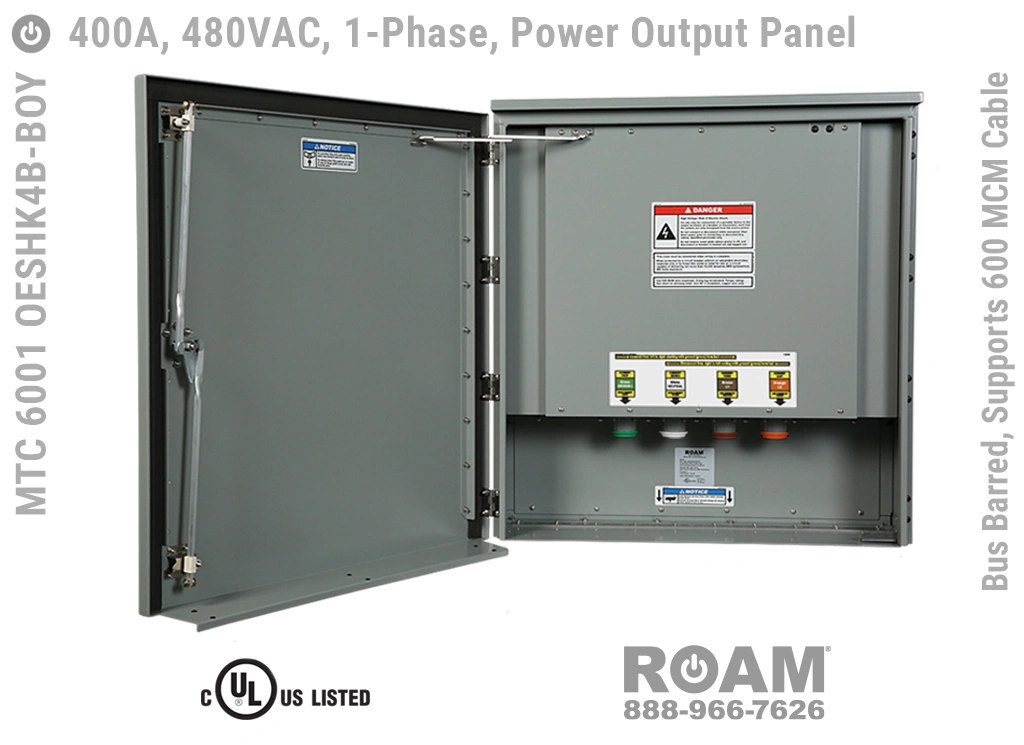

MTC 6001 OESHK4B-BOY
MTC 6001 OESHK4B-BOY - 400A/480VAC - 1-Phase - Power Output Panel - Connection Panel - Tap Box - Docking Station - Bus Barred - Up to 600MCM Cable - Front View - Door Open - Single-Phase - Power Output Interface Box - 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - 400A - Door Open - Showing E1016 (J-Series/16-Series) Female Cam-Lok Connectors - Cam-Lock - MTC6001OESHK4B-BOY - UL/cUL Listed

MTC 6001 OESHK4B-BOY - 400A/480VAC

Single-Phase - Power Output Panel - Open

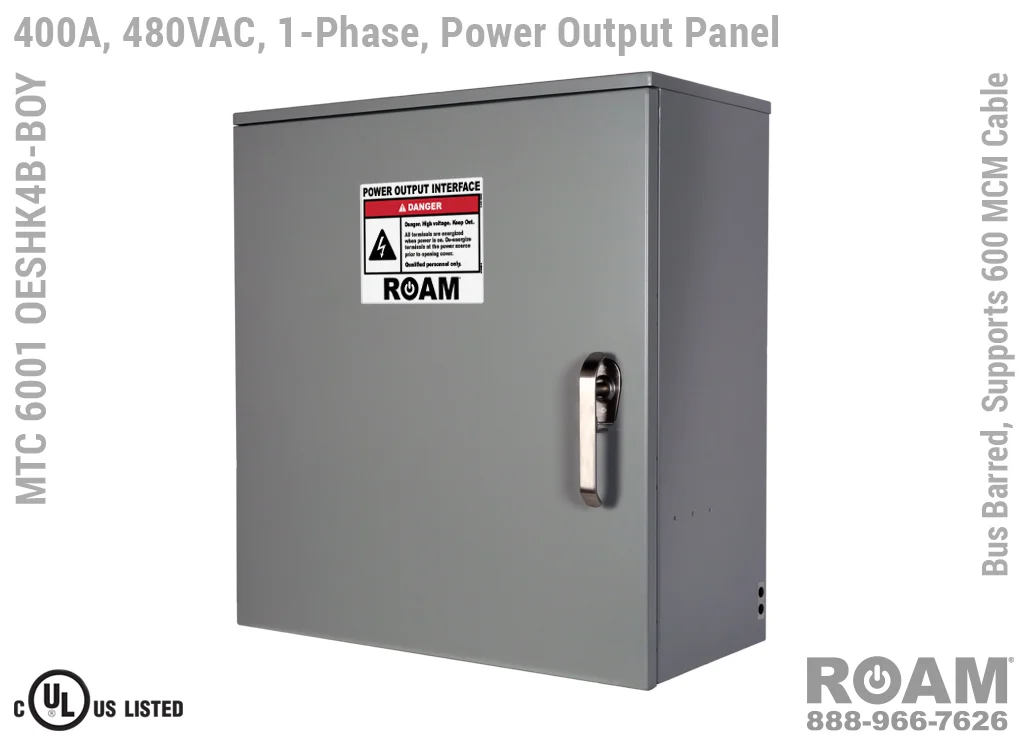

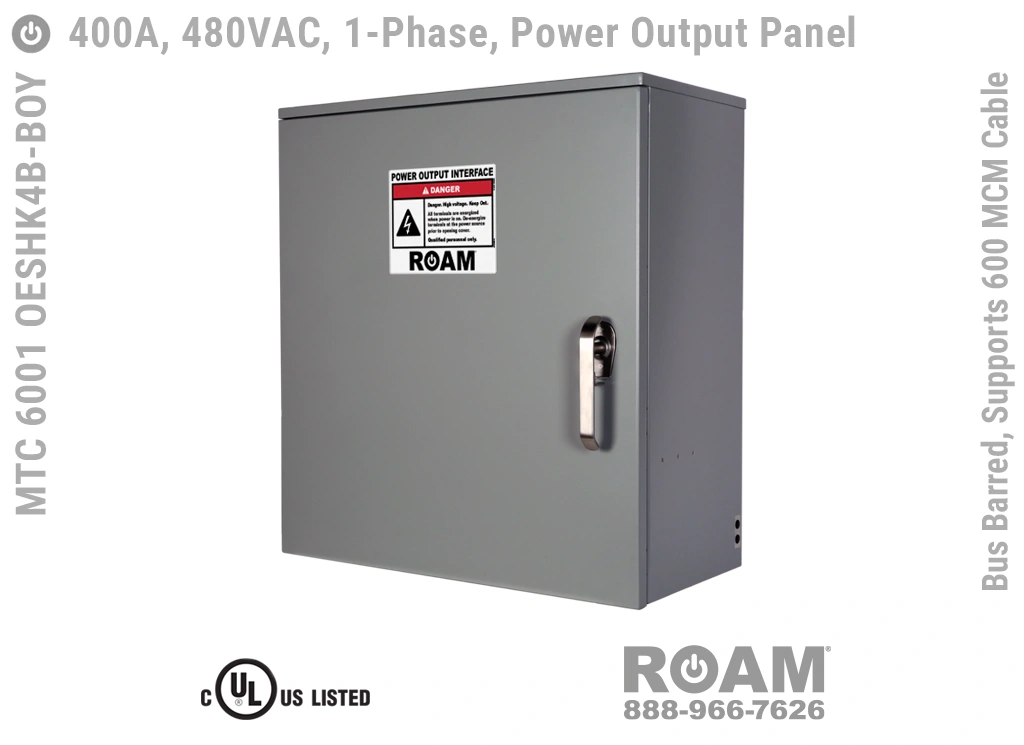

MTC 6001 OESHK4B-BOY
MTC 6001 OESHK4B-BOY - 400A/480VAC - 1-Phase - Power Output Panel - Connection Panel - Tap Box - Docking Station - Bus Barred - Up to 600MCM Cable - Front View - Door Closed - Single-Phase - Power Output Interface Box - 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - 400A - Door Open - Showing E1016 (J-Series/16-Series) Female Cam-Lok Connectors - Cam-Lock - MTC6001OESHK4B-BOY - UL/cUL Listed

MTC 6001 OESHK4B-BOY - 400A/480VAC

Single-Phase - Power Output Panel - Closed

MTC 6001 OESHK6B
MTC 6001 OESHK6B - 400A/600VAC - 1-Phase - Power Output Panel - Connection Panel - Tap Box - Docking Station - Bus Barred - Up to 600MCM Cable - Front View - Door Open - Single-Phase - Power Output Interface Box - 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - 400A - Door Open - Showing E1016 (J-Series/16-Series) Female Cam-Lok Connectors - Cam-Lock - MTC6001OESHK6B - UL/cUL Listed

MTC 6001 OESHK6B - 400A/600VAC

Single-Phase - Power Output Panel - Open

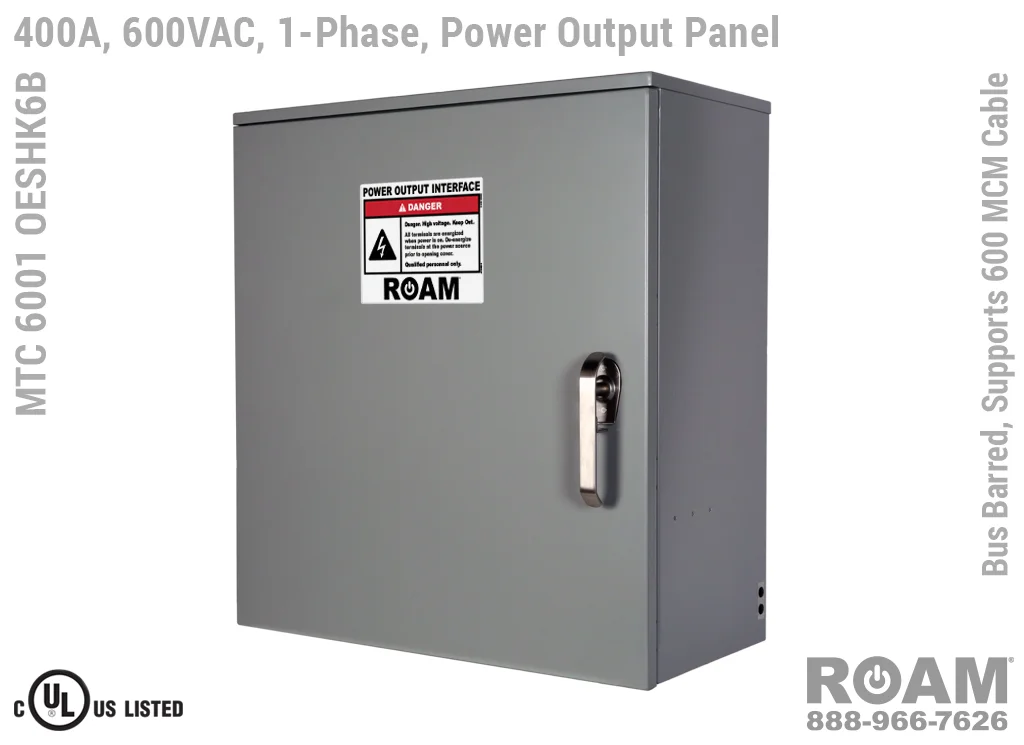

MTC 6001 OESHK6B
MTC 6001 OESHK6B - 400A/600VAC - 1-Phase - Power Output Panel - Connection Panel - Tap Box - Docking Station - Bus Barred - Up to 600MCM Cable - Front View - Door Closed - Single-Phase - Power Output Interface Box - 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - 400A - Door Open - Showing E1016 (J-Series/16-Series) Female Cam-Lok Connectors - Cam-Lock - MTC6001OESHK6B - UL/cUL Listed

MTC 6001 OESHK6B - 400A/600VAC

Single-Phase - Power Output Panel - Closed

Canadian Color Coding Available

Any Roam panels normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to use the US color coding (L1 = Black & L2 = Red), then you may want the standard US color coding (so long as local electrical codes allow).

Model Numbers & Options

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).


UL 1008 Listed—US & Canada
All MTS Panels—Except for Service Entry rated panels.
Service Entry rated panels are not cUL Listed.
