Power Input Panel

Single-Phase 400A-600MCM

MTC 6001 IESHKvB

Supporting up to 400 Amps per panel and 600 MCM cable lugs on the wireway side, Roam's MTC® 6001 IESHKvB series ("v" = Voltage Code) of Power Input Panels provides a rugged and cost-effective exterior connection point for temporary power input to trailers, buses, or temporary structures.



Roam's 400A-600MCM Power Input Panels use E1016 (J-Series/16-Series) Male Cam-Lok* brand connectors supporting up to 400A, along with bus bar extensions that support up to two 600 MCM cable lugs per connector. Roam's 400A-600MCM panels are constructed from powder coated aluminum and are also built with a dedicated wire chase (wireway) in the back to allow safe cable entry (via conduit) from the bottom.



The standard in safety and outdoor reliability, Roam's line of Power Input Panels (also known as Tap Boxes or Inlet Boxes) makes connecting a temporary power input to line power output from a building fast, easy, and most importantly—safe. The MTC 6001 IESHKvB line is part of Roam's UL Listed (US & Canada) series of single-phase Power Input Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok* brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.

• Bottom conduit access via rear wireway
• Corrosion-resistant powder coating
• UV-resistant four color labels
• Built to NEMA 3R standard
• Internal and external grounding studs
• Five Male E1016 Cam-Lock connectors

• Single-phase power, at up to 400A
• Wireway side accepts up to 600MCM cable
• 240 VAC, 480 VAC, & 600 VAC rated panels
• Spot-welded aluminum construction
• Custom labels & configurations available
• Brown-Orange-Yellow connectors at 480VAC

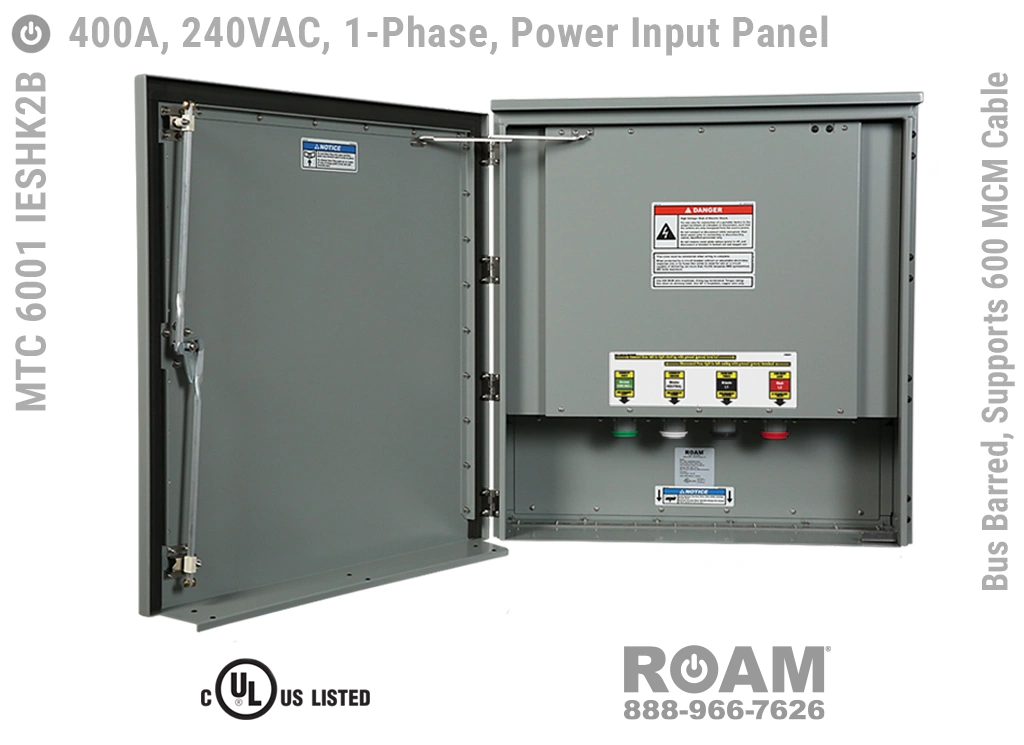

MTC 6001 IESHK2B - 400A/240VAC

Single-Phase - Power Input Panel - Open

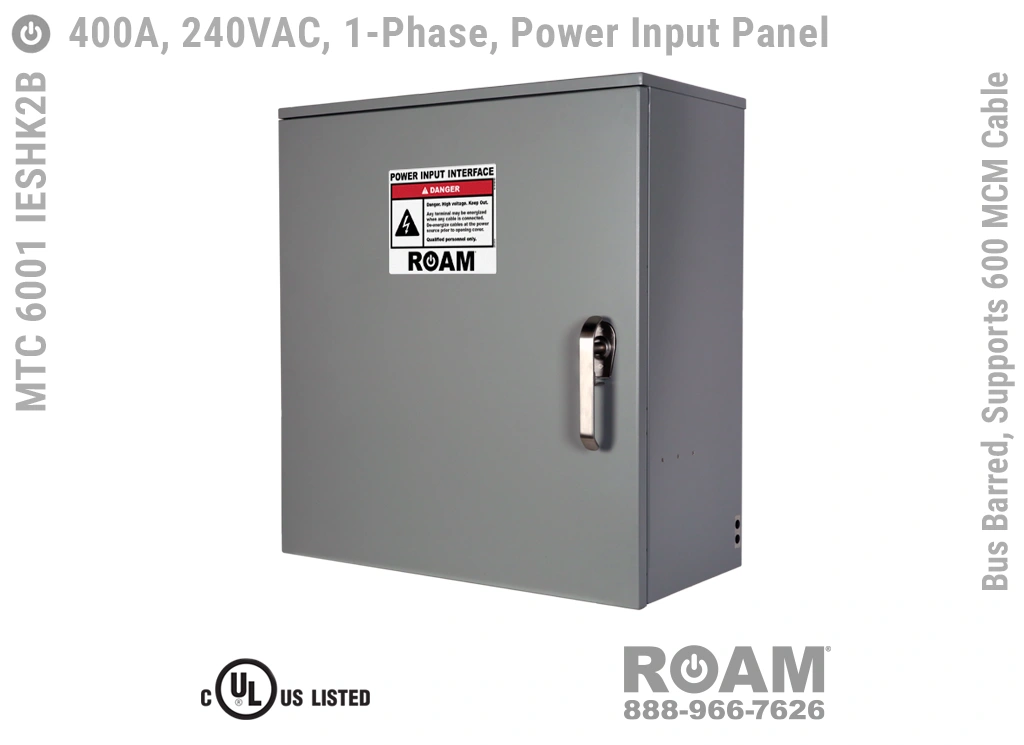

MTC 6001 IESHK2B - 400A/240VAC

Single-Phase - Power Input Panel - Closed

Connections

Roam's MTC 6001 IESHKvB 400A-600MCM Power Input Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the generator cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars. Note that connectors are rotated by 90° from normal front facing orientation in this panel.

Voltages up to 600VAC

Roam offers the MTC 6001 IESHKvB Power Input Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 IESHK2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6001 IESHK4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 IESHK6B. All of the 400A-600MCM panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

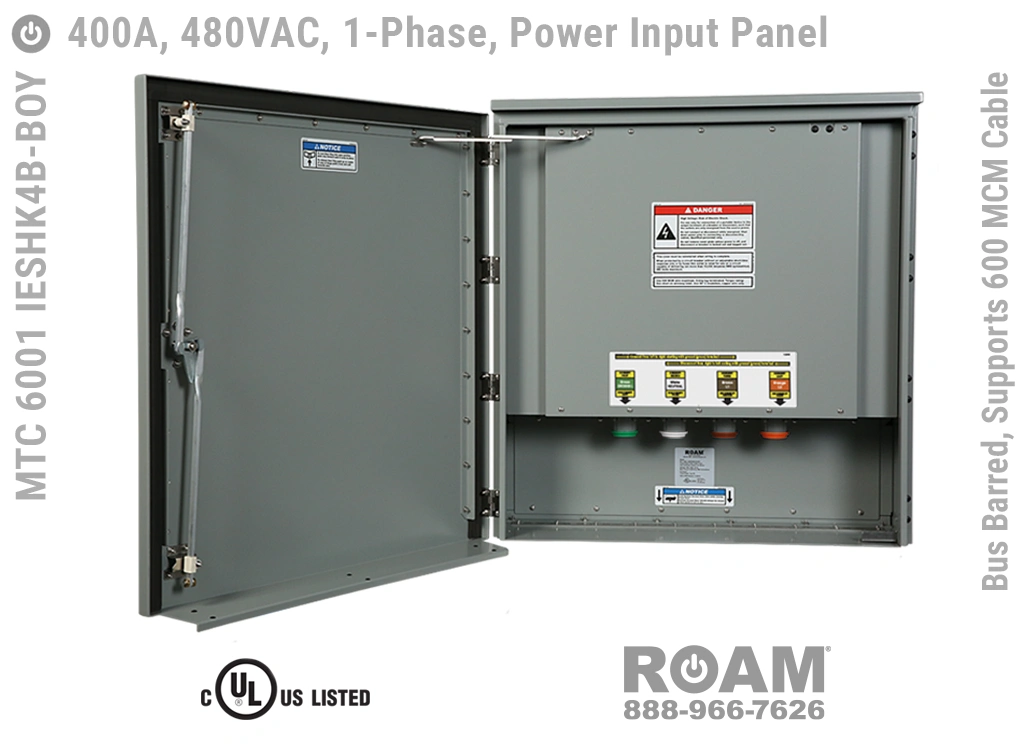

MTC 6001 IESHK4B-BOY - 400A/480VAC

Single-Phase - Power Input Panel - Open

MTC 6001 IESHK4B-BOY - 400A/480VAC

Single-Phase - Power Input Panel - Closed

MTC 6001 IESHK6B - 400A/600VAC

Single-Phase - Power Input Panel - Open

MTC 6001 IESHK6B - 400A/600VAC

Single-Phase - Power Input Panel - Closed

Canadian Color Coding Available

Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If you are connecting the Power Input Panel to a power source that uses the US color coding (L1=Black & L2=Red), then you may want the standard US color system (so long as local electrical codes allow).

Model Numbers & Options

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).

UL 1008 Listed—US & Canada

Roam Technologies has acquired exclusive license to manufacture, market, and sell the entire line of telecom and power products formerly produced by Micrin Technologies Corporation, Micrin Technologies LLC, United States Radio Frequency (USRF) Corporation, and Micrin Systems.

Roam, MTC, and Power On are registered trademarks of XIP, LLC, and are used under exclusive license by Roam Technologies.


*Cam-Lok is a registered trademark of Cooper Industries. *Marinco is a registered trademark of Power Products LLC.
