Supporting up to 600 Amps, Roam's MTC® 6003 OES6KvB series ("v" = Voltage Code) of Power Output Panels provides a rugged and cost-effective, exterior connection point for high-capacity external power loads. Roam's 600A Power Output Panels use ten E1016 (J-Series/16 Series) Female Cam-Lok* connectors in two rows of 400A (max) connectors bus-barred together allows the panel to support up to 600A.
The standard in safety and outdoor reliability, Roam's line of Power Output Panels makes connecting building (line) power to external or internal loads fast, easy, and most importantly—safe.
Like the rest of Roam's Power Output Panels (also known as Outlet Panels, Docking Stations, or Tap Boxes), the MTC 6003 OES6KvB panels offers a safe, secure power output connection point for external loads such as lighting, mobile equipment, booths, test load banks, or entertainment venue power. The MTC 6003 OES6KvB line is part of Roam's UL Listed (US & Canada) series of three-phase Power Output Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok* brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.
Roam's 600A Power Output Panels are functionally identical to our 800A (max) Power Output Panels (docking stations). The maximum amperage that the Series-16 Cam-Lock connectors can handle is 400A each, so any panel that needs to support over 400A and up to 800A must use two rows of Cam-Lock connectors that are bus-barred together.
Roam's MTC 6003 OES6KvB 600 Amp Power Output Panels accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the output cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars.

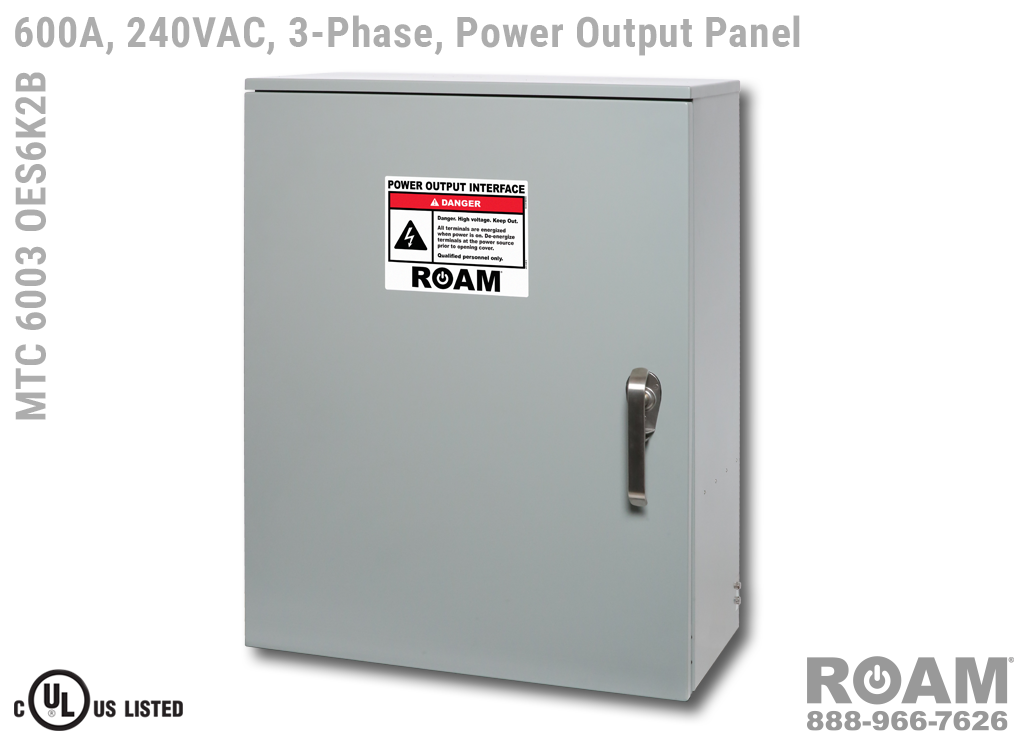

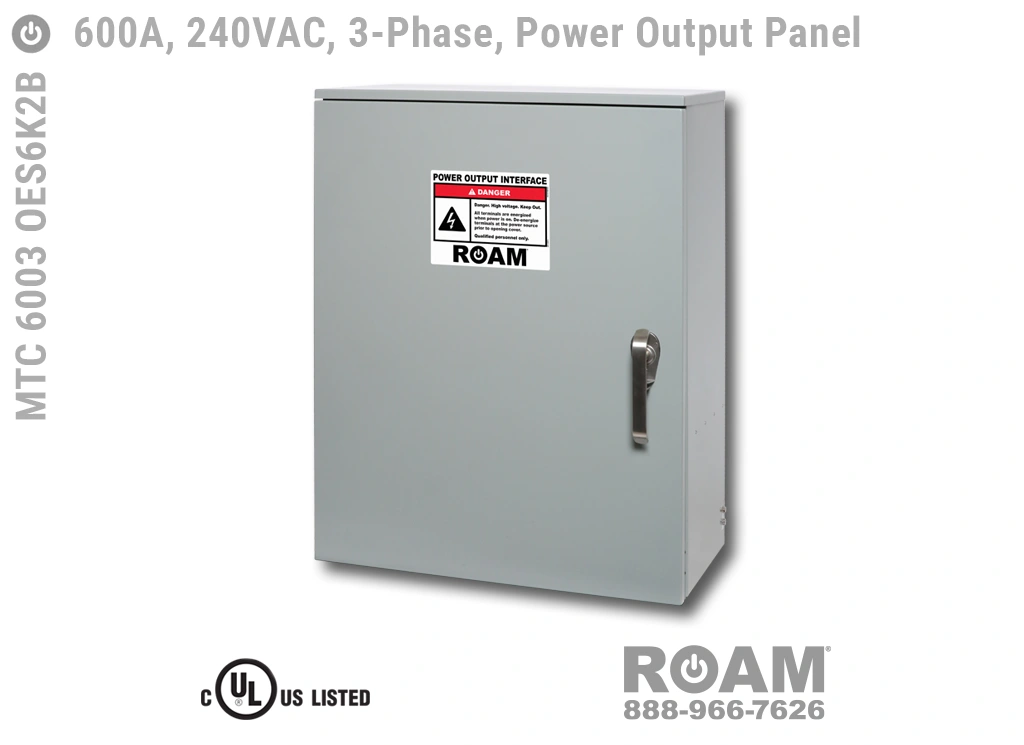

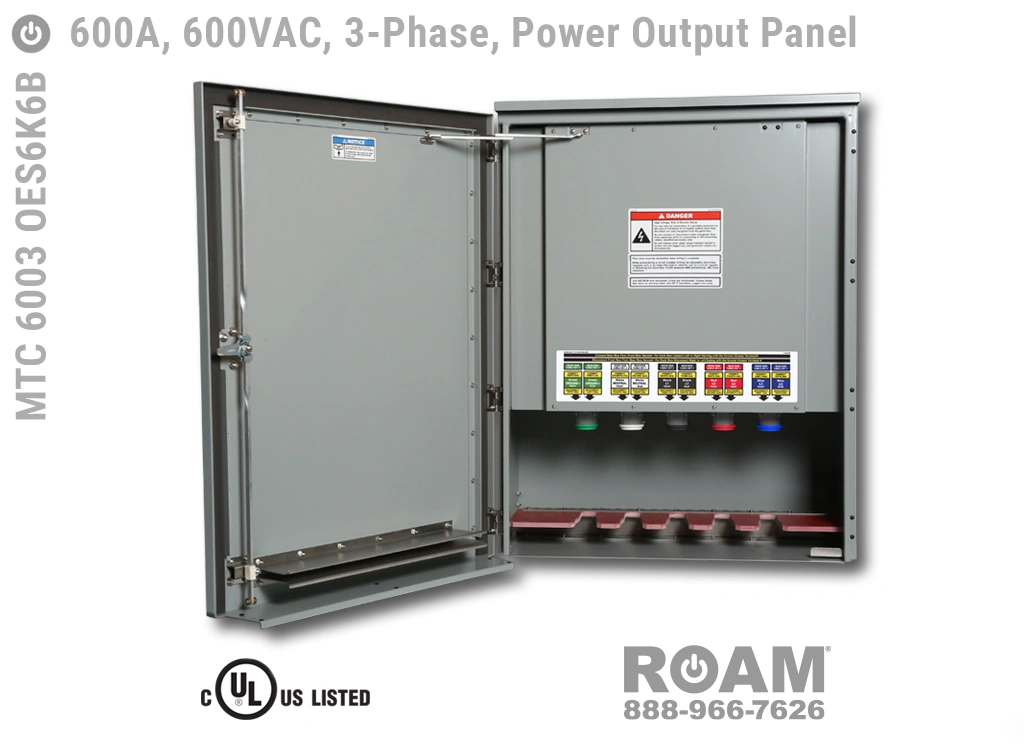

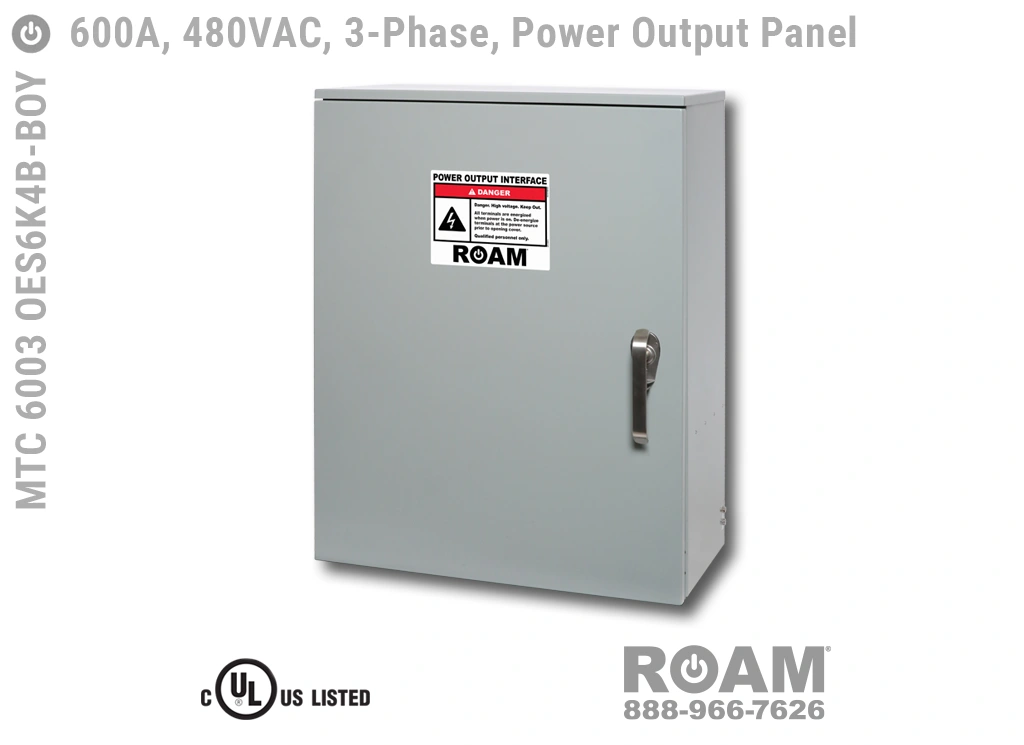

Roam offers the MTC 6003 OES6KvB Power Output Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6003 ES6K2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 OES6K4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6003 OES6K6B. All of the 600A panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.
Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black, L2=Red, & L3=Blue, are also available in the typical Canadian color coding format of L1=Red, L2=Black, & L3=Blue. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to uses the US color coding (L1 = Black, L2 = Red, L3 = Blue), then you may want the standard US color coding (so long as local electrical codes allow).

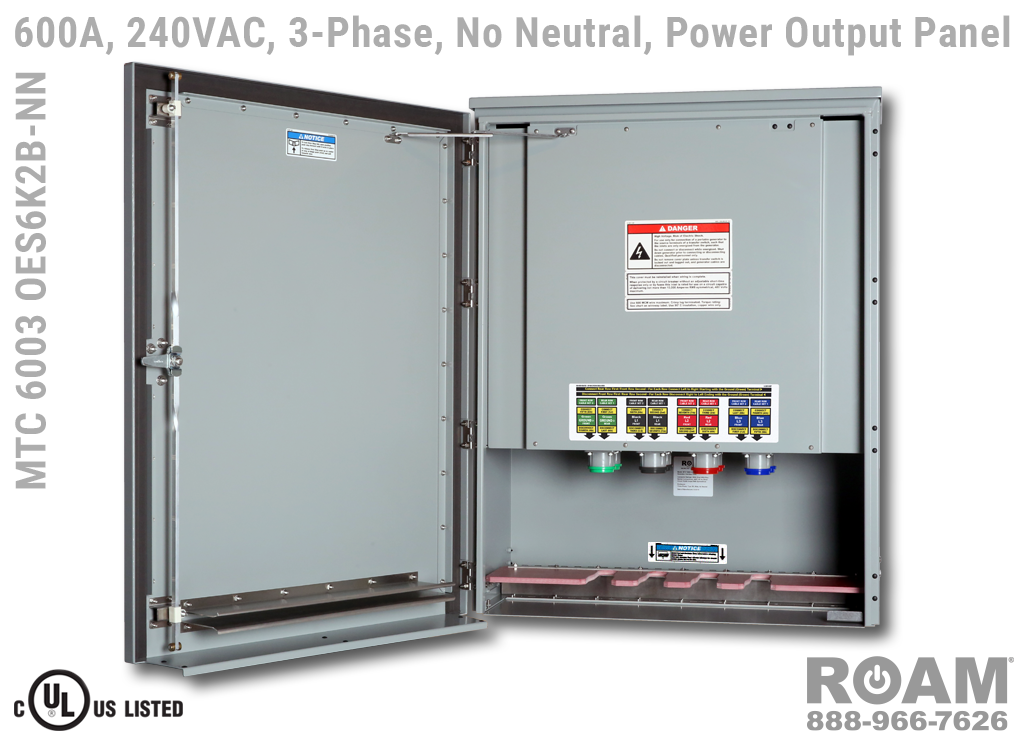

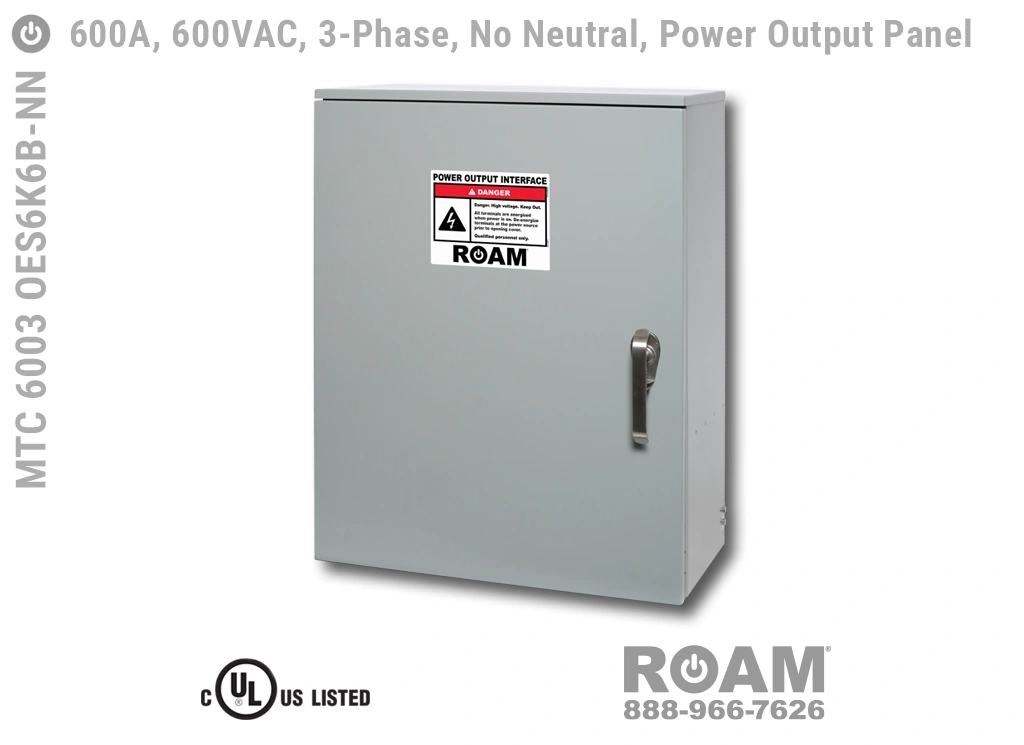

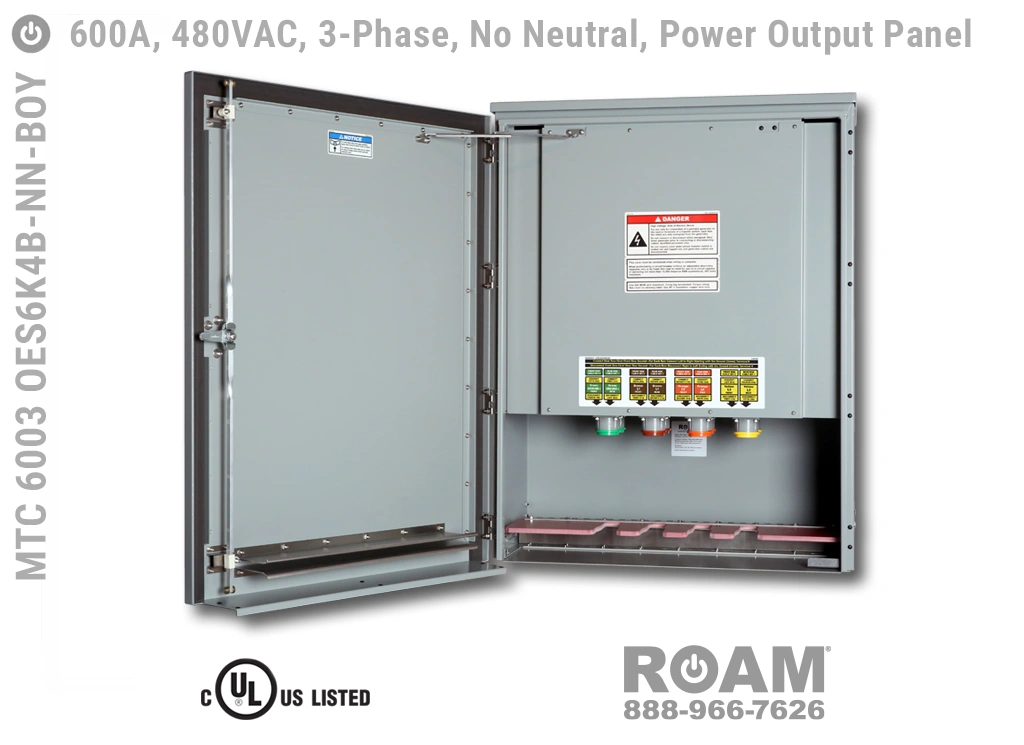

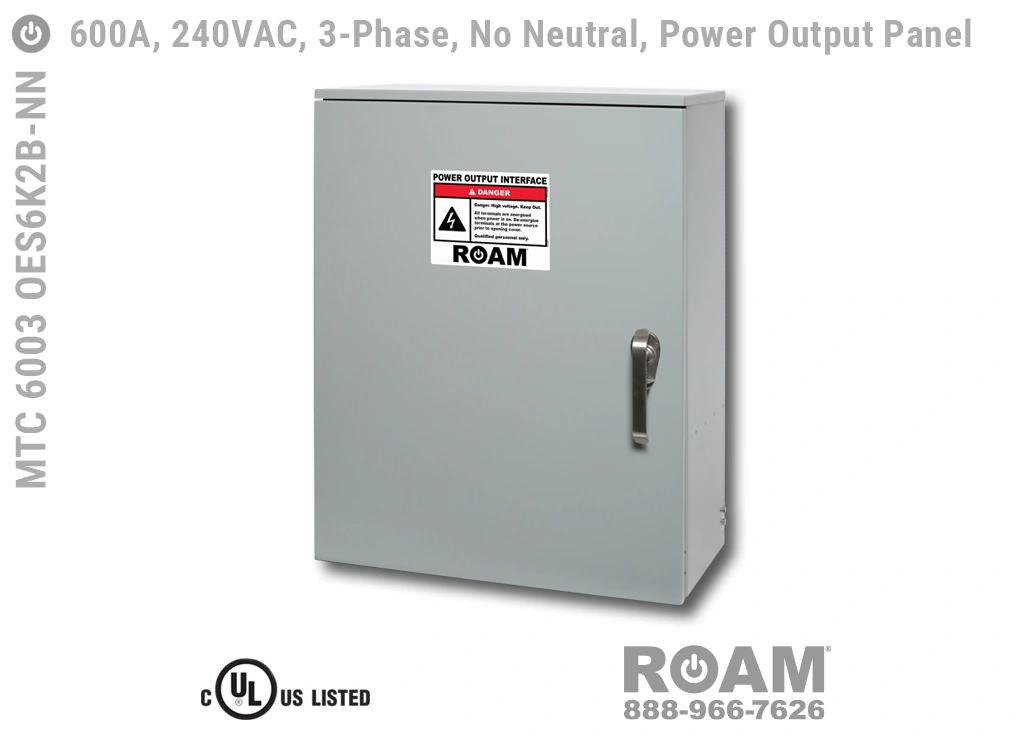

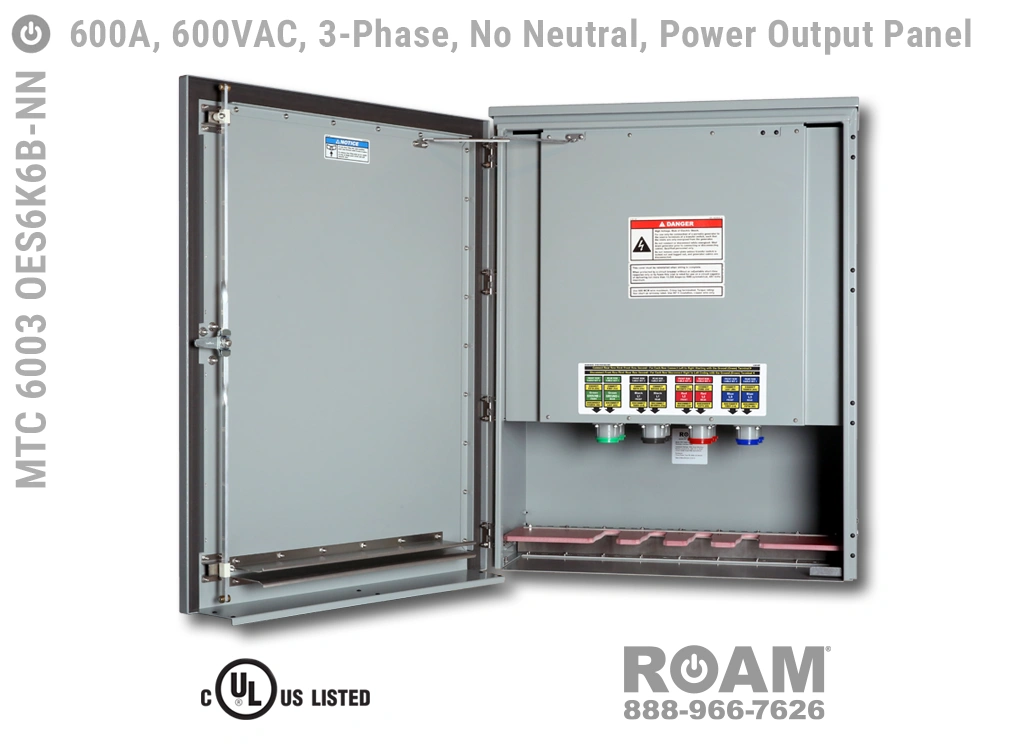

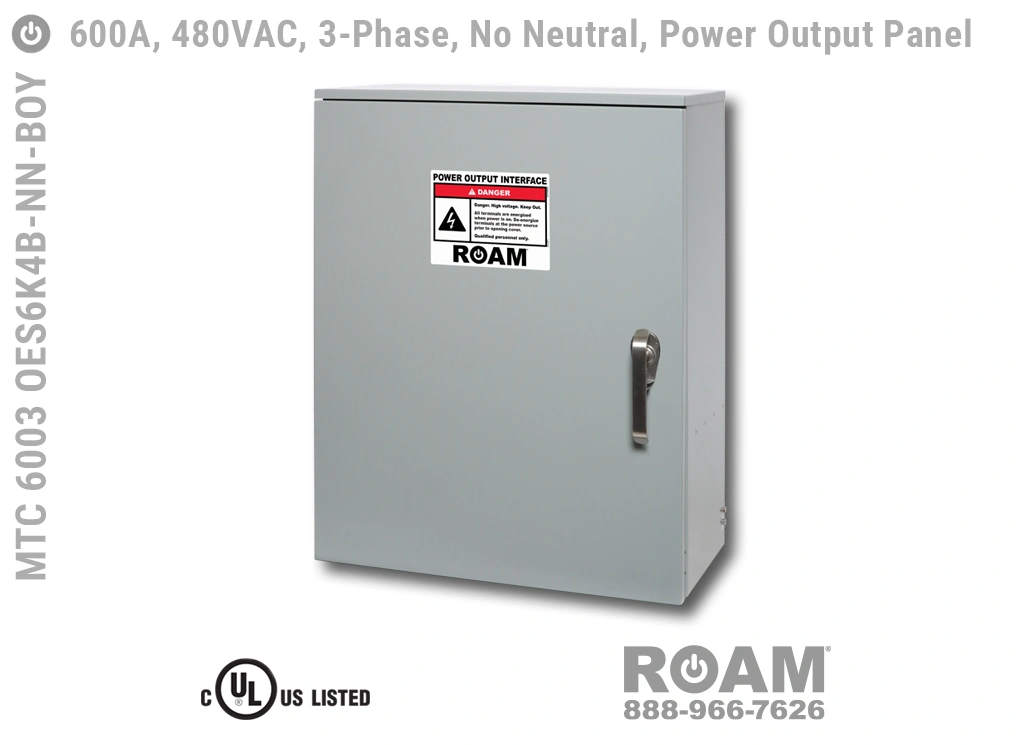

Roam's 600A Power Output Panels (Boxes) can also be ordered with no neutral connection for site and generator configurations designed for just Ground, L1, L2, and L3 cables. The "No Neutral" versions of these panels are also UL Listed and cUL Listed (Canada). To order a panel without a neutral connector just add a "-NN" to the end of the Model Number. The "No Neutral" panels use only four sets of two Cam-Lok connectors bus-barred together (a set of two for Ground, a set of two for L1, a set of two for L2, and a set of two for L3) for a total of eight connectors.
Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC | No Neutral Connector |
---|---|---|---|---|
MTC 6003 OES6KvB | MTC 6003 OES6K2B | MTC 6003 OES6K4B-BOY | MTC 6003 OES6K6B | MTC 6003 OES6KvB-NN |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
