Roam's MTC® 6001 OECKv series ("v" = Voltage Code) of Power Output Panels provides a compact, rugged, and cost-effective exterior connection point connection point for high-capacity external power loads. These Power Output Panels use E1016 (J-Series/16 Series) Female Cam-Lok* brand connectors and are part of Roam's UL Listed (US & Canada) series of single-phase Power Output Panels.
The standard in safety and outdoor reliability, Roam's Power Output Panels makes connecting building (line) power to external or internal loads fast, easy, and most importantly—safe.
Like the rest of Roam's line of Power Output Panels (also known as Outlet Panels, Docking Stations, or Tap Boxes), the MTC 6001 OECKv panels offers a safe, secure power output connection point for external loads such as lighting, mobile equipment, booths, test load banks, or entertainment venue power. The MTC 6001 OECKv line is part of Roam's UL Listed (US & Canada) MTC 6003 series of three-phase Power Output Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.
Roam's MTC 6001 OECKv 200 Amp Power Output Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the power output cable side, and from 1/0 to 4/0 cables on the internal wireway side.

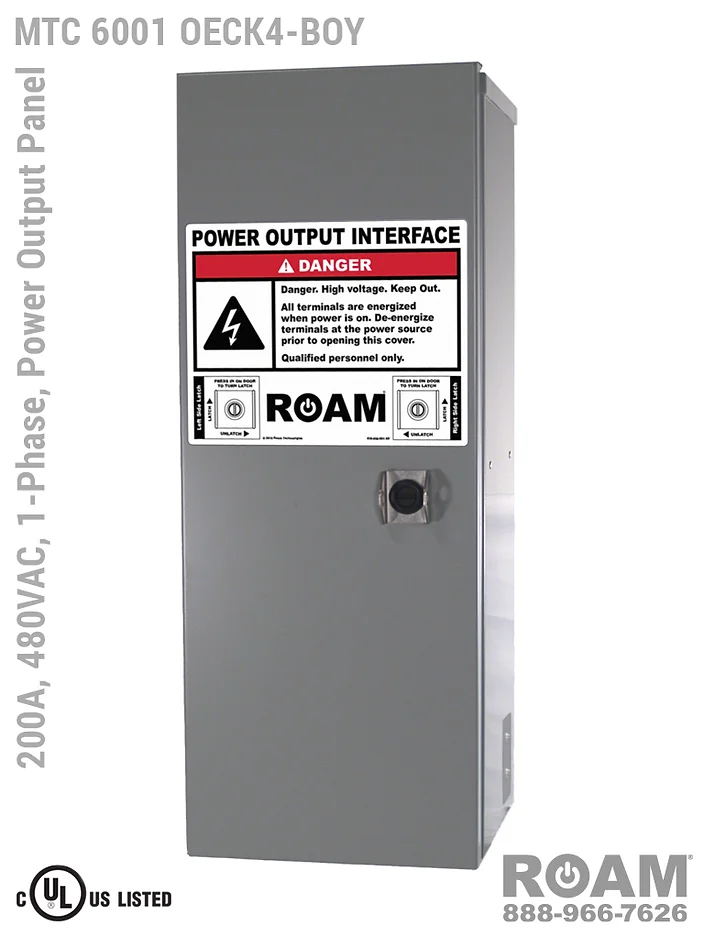

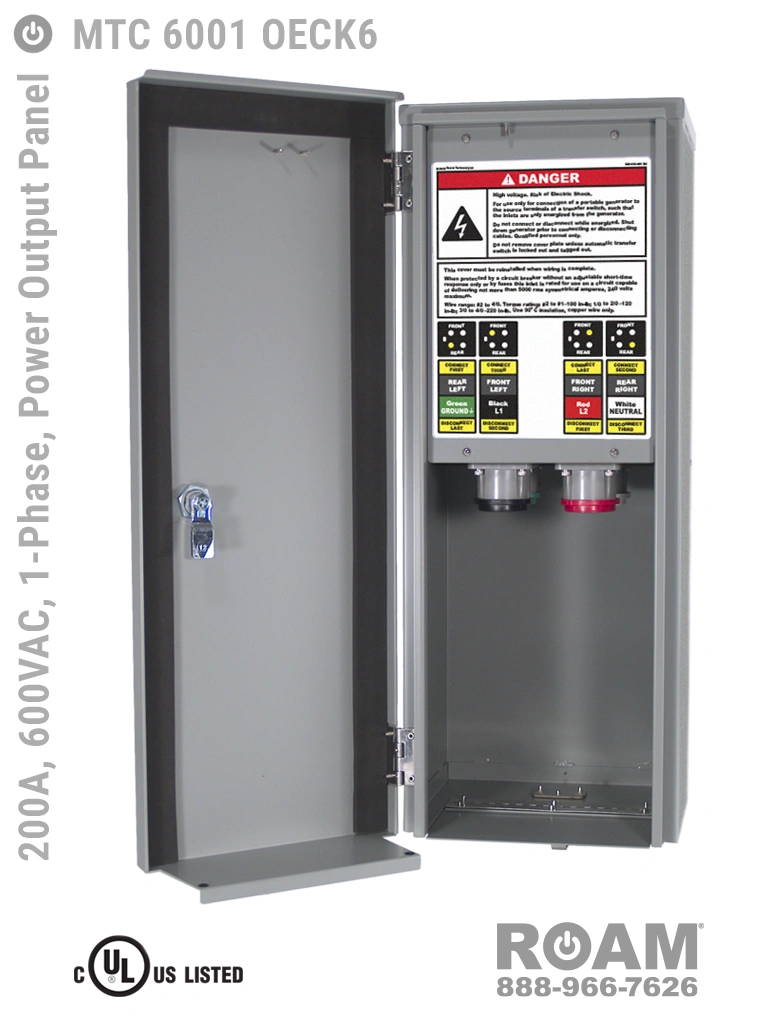

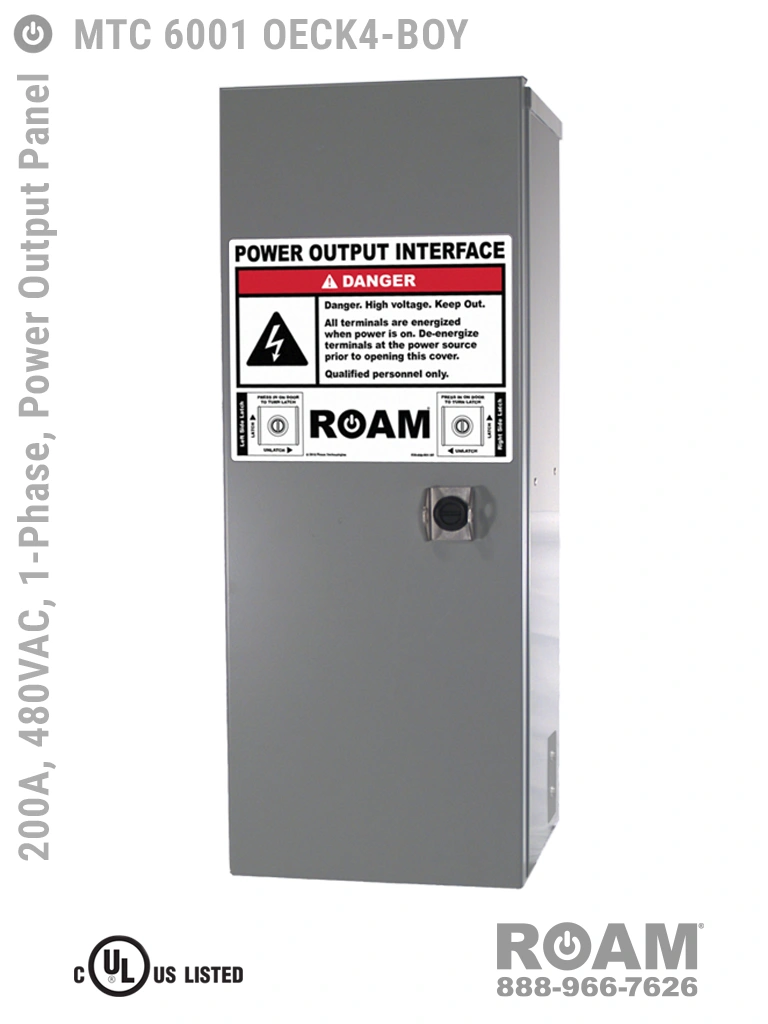

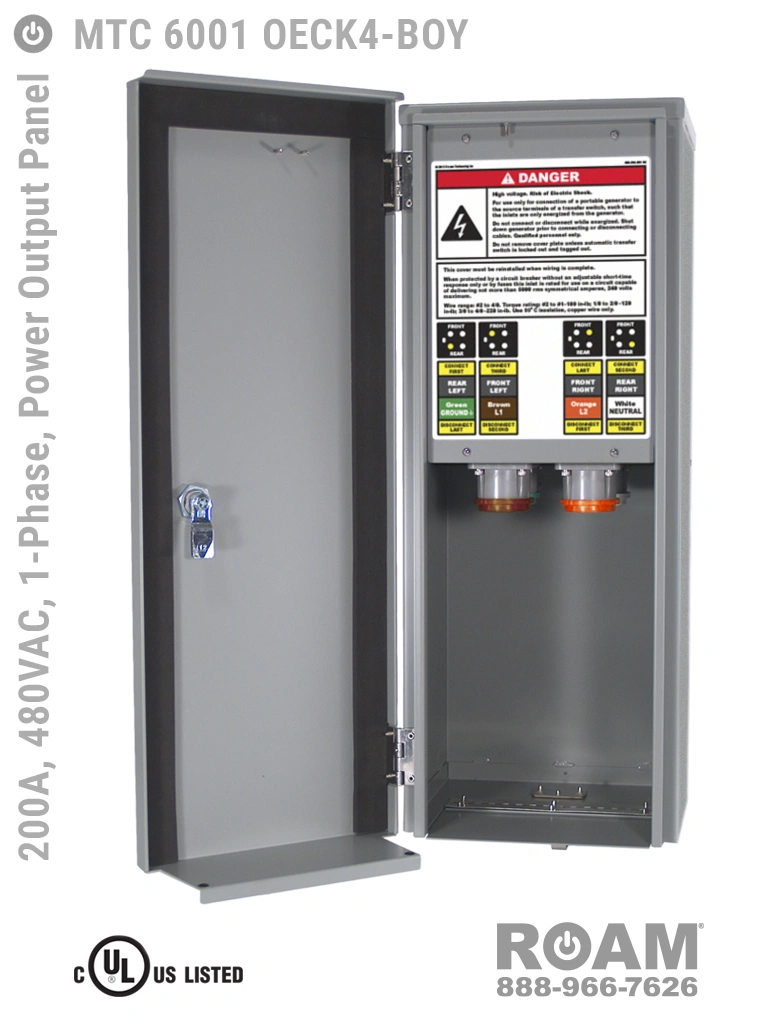

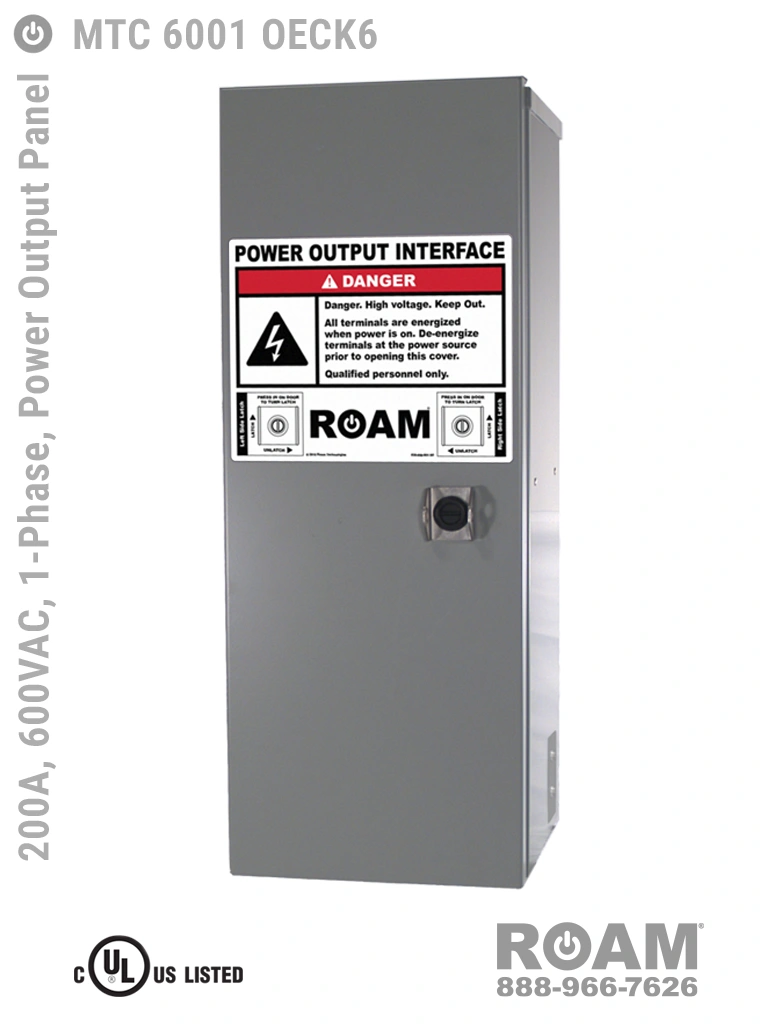

Roam offers MTC 6001 OECKv Power Output Panels in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 OECK2, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6001 OECK4-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 OECK6, which are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.
Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to use the US color coding (L1=Black & L2=Red), then you may want the standard US color system (so long as local electrical codes allow).
Base Model Number | Up to 240VAC | Up to 480VAC | Up to 600VAC |
---|---|---|---|
MTC 6001 OECKv | MTC 6001 OECK2 | MTC 6001 OECK4-BOY | MTC 6001 OECK6 |
The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
