Power Input Panel

Single-Phase 200A Compact
MTC 6001 IECKv

Roam's MTC® 6001 IECKv series ("v" = Voltage Code) of Power Input Panels provides a compact, rugged, and cost-effective exterior connection point for  exterior connection point for temporary power input to trailers, buses, or temporary structures. These Power Input Panels use E1016 (J-Series/16 Series) male Cam-Lok* brand connectors and are part of Roam's UL Listed (US & Canada) series of single-phase power input panels.

The standard in safety and outdoor reliability, Roam's line of Power Input Boxes (also known as Tap Boxes or Inlet Boxes) makes connecting a temporary power input to line power output from a building fast, easy, and most importantly—safe. Roam uses genuine Cooper Crouse-Hinds Cam-Lok brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.

• Single-phase power, at up to 200A

• 240 VAC, 480 VAC, & 600 VAC rated panels

• Spot-welded Galvanneal steel construction

• Custom labels & configurations available

• Brown-Orange-Yellow connectors at 480VAC

• Corrosion-resistant powder coating

• UV-resistant four color labels

• Built to NEMA 3R standard

• Internal and external grounding studs

• Four Male E1016 Cam-Lok connectors

MTC 6001 IECK2

MTC 6001 IECK2 - 200A/240VAC - Single-Phase

Compact Power Input Panel - Open

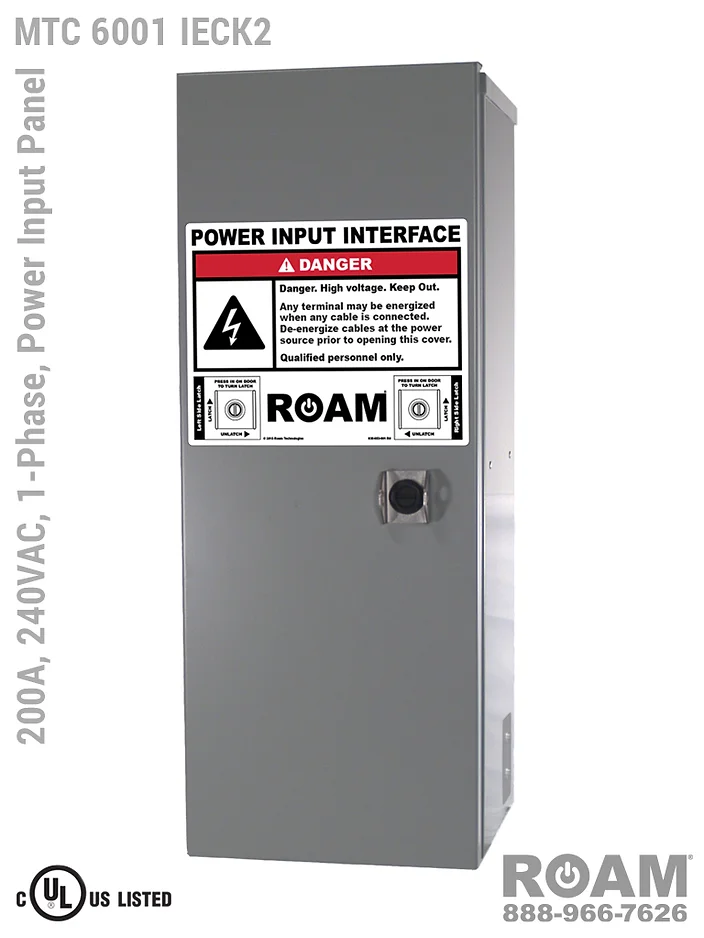

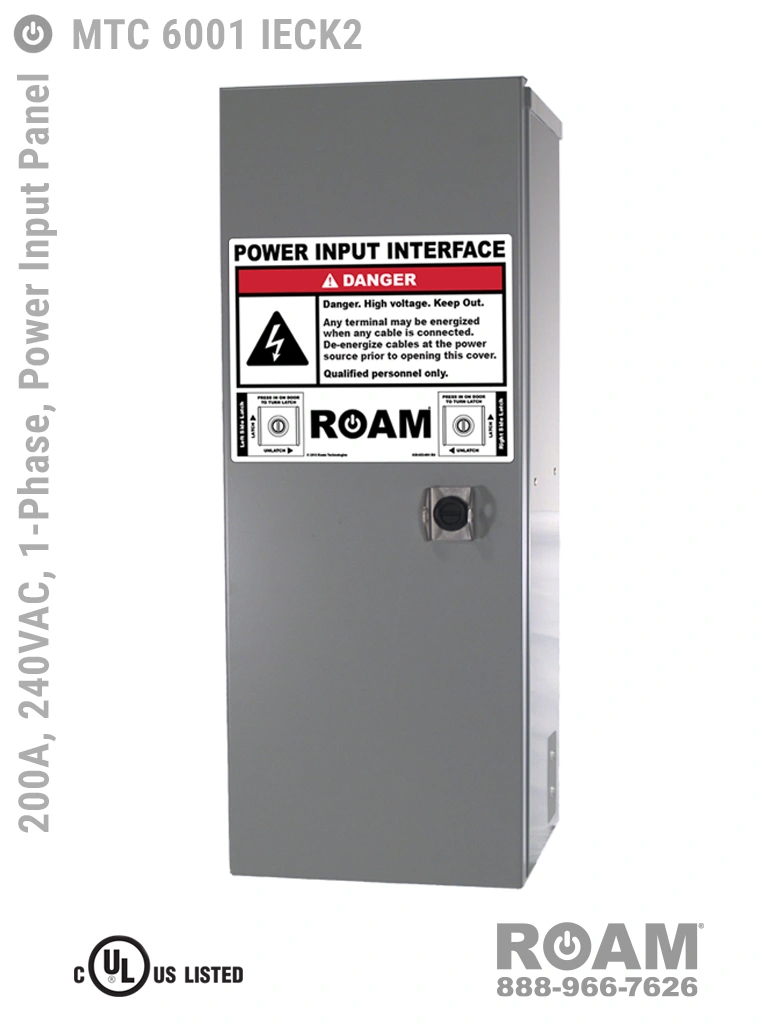

MTC 6001 IECK2

MTC 6001 IECK2 - 200A/240VAC - Single-Phase

Compact Power Input Panel - Closed

Connections

Roam's MTC 6001 IECKv 200 Amp Power Input Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the line power cable side, and from 1/0 to 4/0 cables on the internal wireway side.

Voltages up to 600VAC

Roam offers MTC 6001 IECKv Power Input Panels in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 IECK2, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6001 IECK4-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 IECK6, which are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange color coding (for labels, Cam-Loks, & Cam-Lok spring caps) is normally used for most 480 VAC applications.

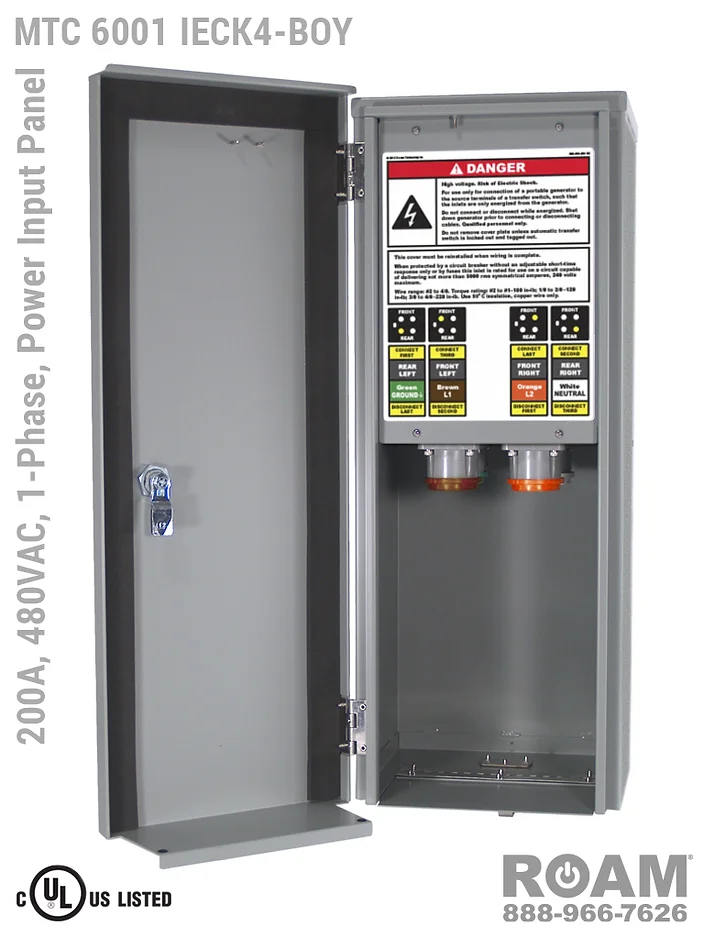

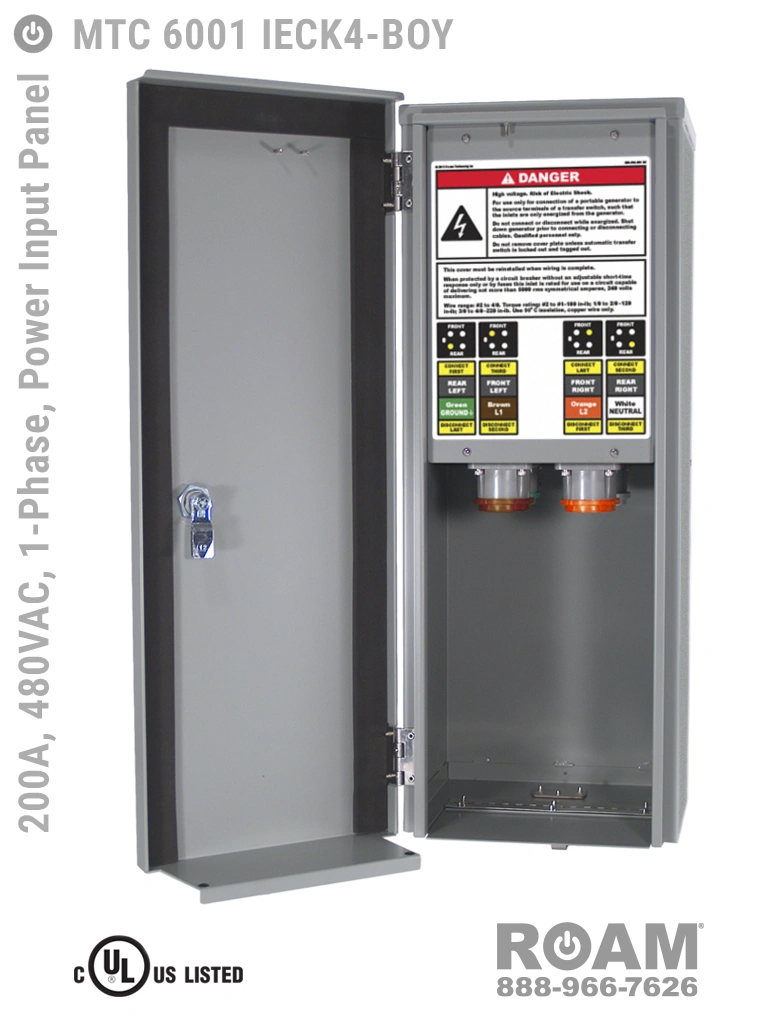

MTC 6001 IECK4-BOY

MTC 6001 IECK4-BOY - 200A/480VAC

Single-Phase - Compact Input Panel - Open

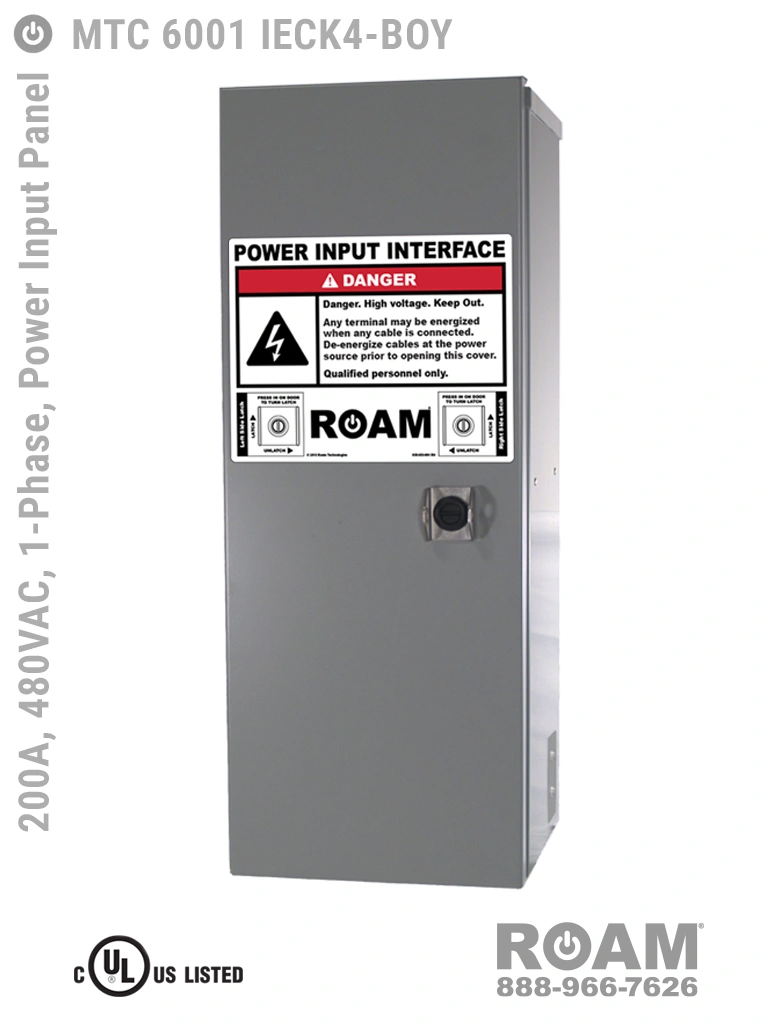

MTC 6001 IECK4-BOY

MTC 6001 IECK4-BOY - 200A/480VAC

Single-Phase - Compact Input Panel - Closed

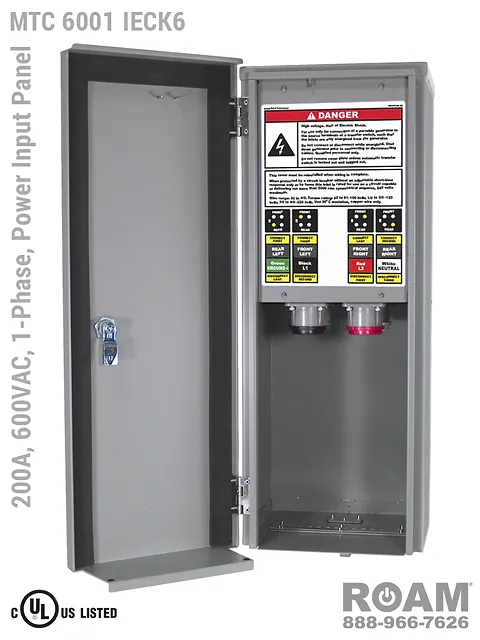

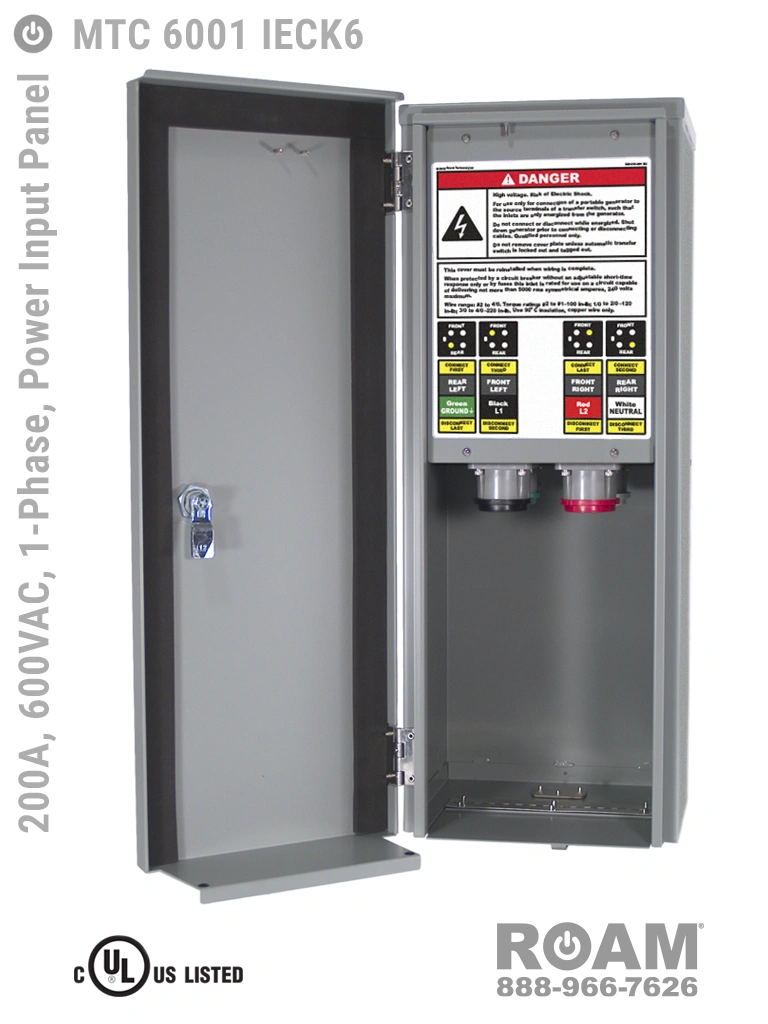

MTC 6001 IECK6

MTC 6001 IECK6 - 200A/600VAC - Single-Phase

Compact Power Input Panel - Open

MTC 6001 IECK6

MTC 6001 IECK6 - 200A/600VAC - Single-Phase

Compact Power Input Panel - Closed

Canadian Color Coding Available

Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the power source you are connecting to uses the US color coding (L1=Black & L2=Red), then you may want the standard US color system (so long as local electrical codes allow).

Spring Caps

These units are also available without Cam-Lock Spring Caps. Roam strongly recommends the Spring Cap version to help protect the Cam-Lock connectors' brass conductors from insects, spider webs, dust, and corrosion. Omit the "K" from the model number to order a version of this panel without Spring Caps.


UL 1008 Listed—US & Canada

Model Numbers & Options

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
