Power Output Panel

Three-Phase 150A Mini Cam-Lock

MTC 6003 OESMKv

Roam's MTC® 6003 OESMKv Mini Cam-Lock series ("v" = Voltage Code) of Power Output Panels provides a rugged and cost-effective exterior connection point for external or internal power loads.



Roam's line of Mini Cam-Lock panels offer a lower power alternative to our standard 16 Series Cam-Lock panels. The Mini Cam-Lock panels support up to 150A using Marinco* brand 15 Series Cam-Lock connectors. Note that Mini Cam-Lock connectors are smaller than and not compatible with 16 Series standard Cam-Lock connectors. These panels are made with Spring Cap covers for the connectors (to protect against dust or insects).



The standard in safety and outdoor reliability, Roam's line of Power Output Panels makes connecting building (line) power to external or internal loads fast, easy, and most importantly—safe.


Like the rest of Roam's line of Power Output Panels (also known as Outlet Panels, Docking Stations, or Tap Boxes), the MTC 6003 OESMKv series offers a safe, secure power output connection point for external loads such as lighting, mobile equipment, booths, test load banks, or entertainment venue power. The MTC 6003 OESMKv line is part of Roam's UL Listed (US & Canada) MTC 6003 series of single-phase Power Output Panels.

• Corrosion-resistant powder coating
• Built to NEMA 3R standard
• UV-resistant four color labels
• Internal and external ground points
• Marinco Cam-Lock 15-series connectors
• Color coded spring caps for cam-locks
• Brown-Orange-Yellow connectors for 480VAC

• 150A rated Female Mini Cam-Lock connectors
• Three-phase power, up to 150A
• 240 VAC, 480 VAC, & 600 VAC Rated Panels
• Spot-welded Galvanneal steel construction
• Wireway receptacles accept #8–#2 AWG wire
• Connector plugs accept #8–#2 AWG wire
• Custom labels & configurations available


MTC 6003 OESMK2 - 150A/240VAC

Three-Phase - Power Output Panel - Open

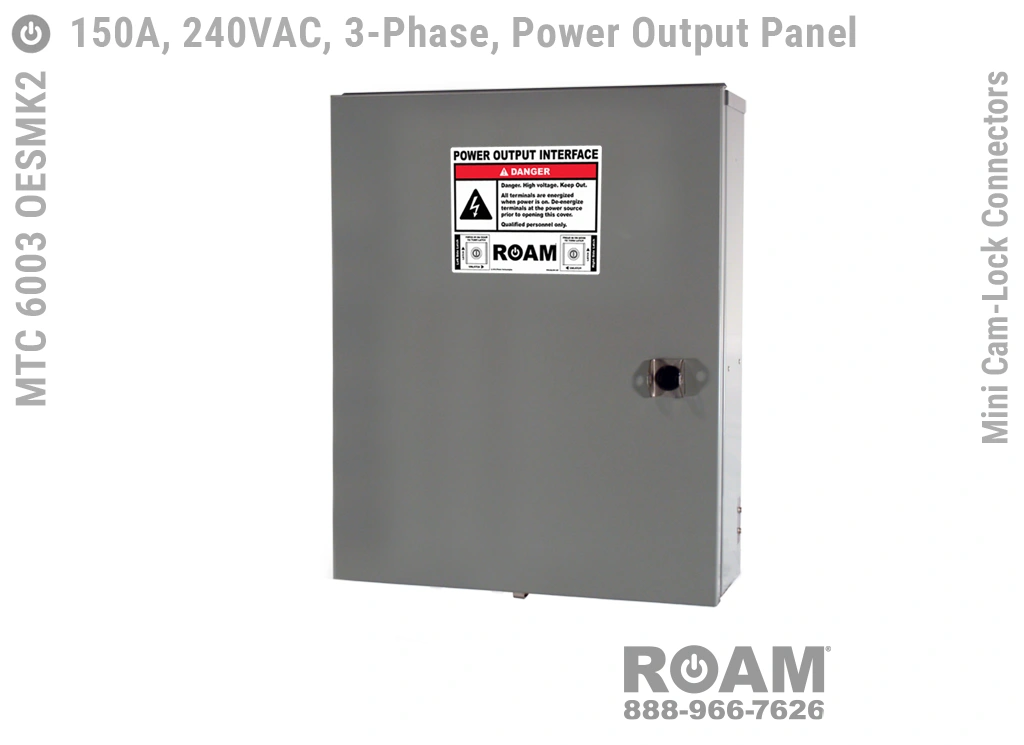

MTC 6003 OESMK2 - 150A/240VAC

Three-Phase - Power Output Panel - Closed

Connections

Roam's MTC 6003 OESMKv Power Output Boxes accept from #8 to #2 (AWG) cables via Mini Cam-Lock plugs on the generator cable side, and from #8 to #2 (AWG) cables on the internal wireway side.

Voltages up to 600VAC

Roam offers the MTC 6003 OESMKv Power Output Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6003 OESMK2, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 OESMK4-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6003 OESMK6. Brown-Orange-Yellow color coding (for labels, Mini Cam-Locks, & Spring Caps) is normally used for most 480 VAC applications.

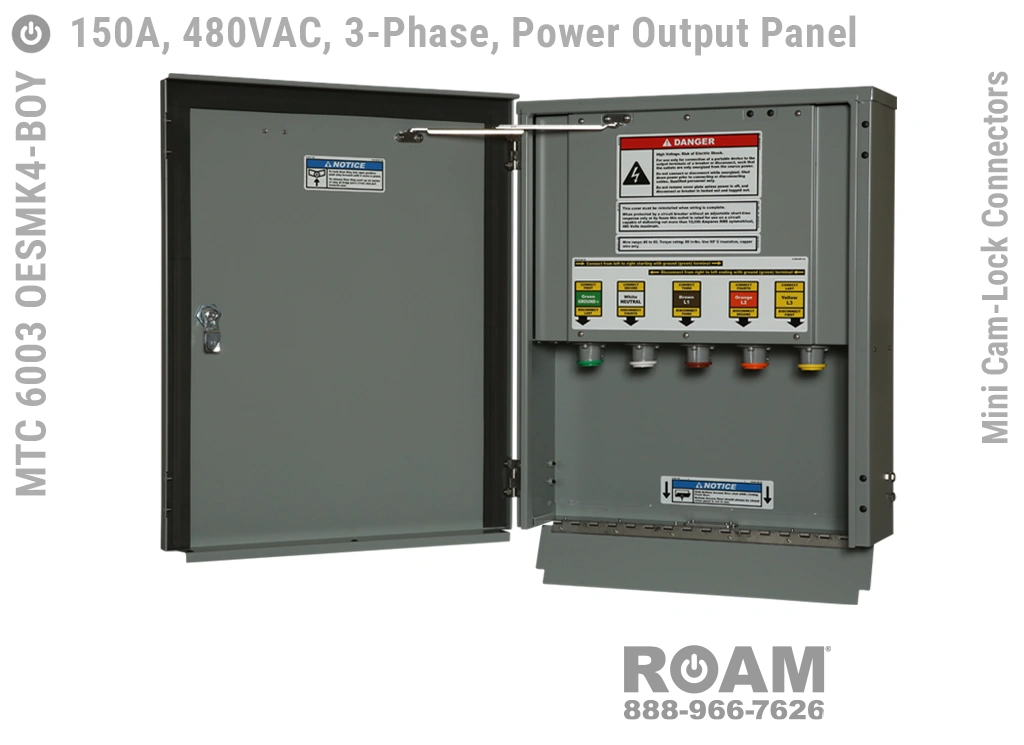

MTC 6003 OESMK4-BOY - 150A/480VAC

Three-Phase - Power Output Panel - Open

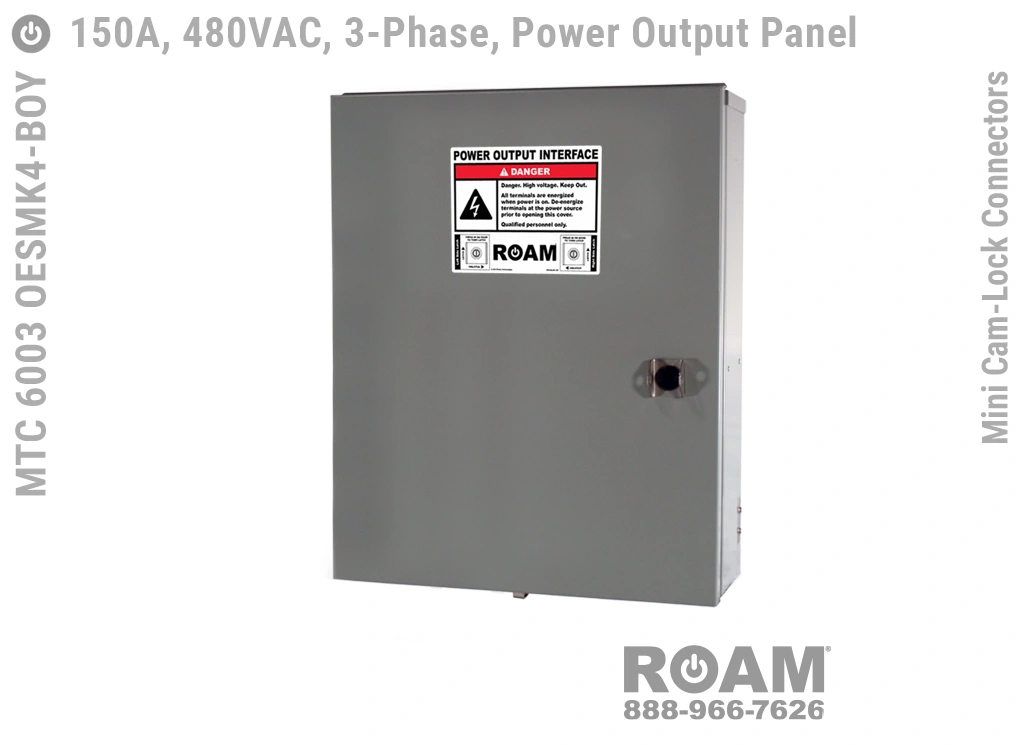

MTC 6003 OESMK4-BOY - 150A/480VAC

Three-Phase - Power Output Panel - Closed

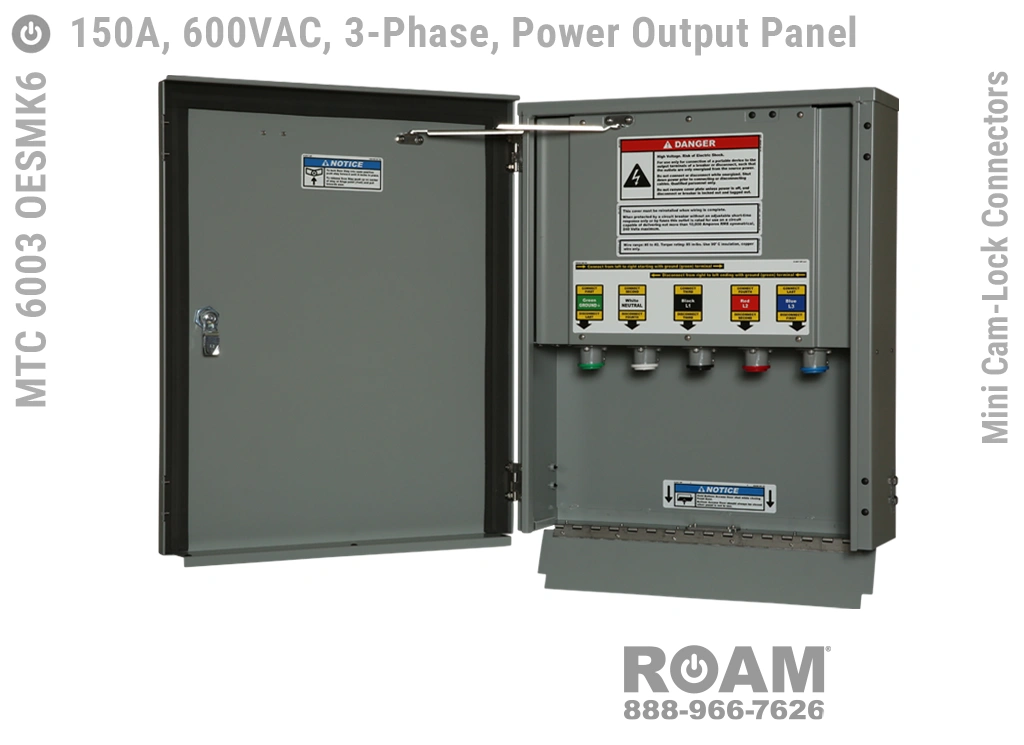

MTC 6003 OESMK6 - 150A/600VAC

Three-Phase - Power Output Panel - Open


MTC 6003 OESMK6 - 150A/600VAC

Three-Phase - Power Output Panel - Closed

Canadian Color Coding Available

Any Roam panels with power connectors normally color coded (for Mini Cam-Locks, Spring Caps, and Labels) as L1=Black, L2=Red, & L3=Blue are also available in the typical Canadian color coding format of L1=Red, L2=Black, & L3=Blue. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to use the US color coding (L1=Black, L2=Red, L3=Blue), then you may want the standard US color system (so long as local electrical codes allow).

No Neutral Options Available

Roam's 150A Mini Cam-Lock Power Ouput Panels (Boxes) can also be ordered with no neutral connection for sites and generator configurations designed for just Ground, L1, L2, and L3 cables. To order a panel without a neutral connector just add a "-NN" to the end of the Model Number. The "No Neutral" panels use only four Mini Cam-Lock connectors.


MTC 6003 OESMK2-NN - 150A/240VAC

Three-Phase - Power Output Panel

No Neutral - Open

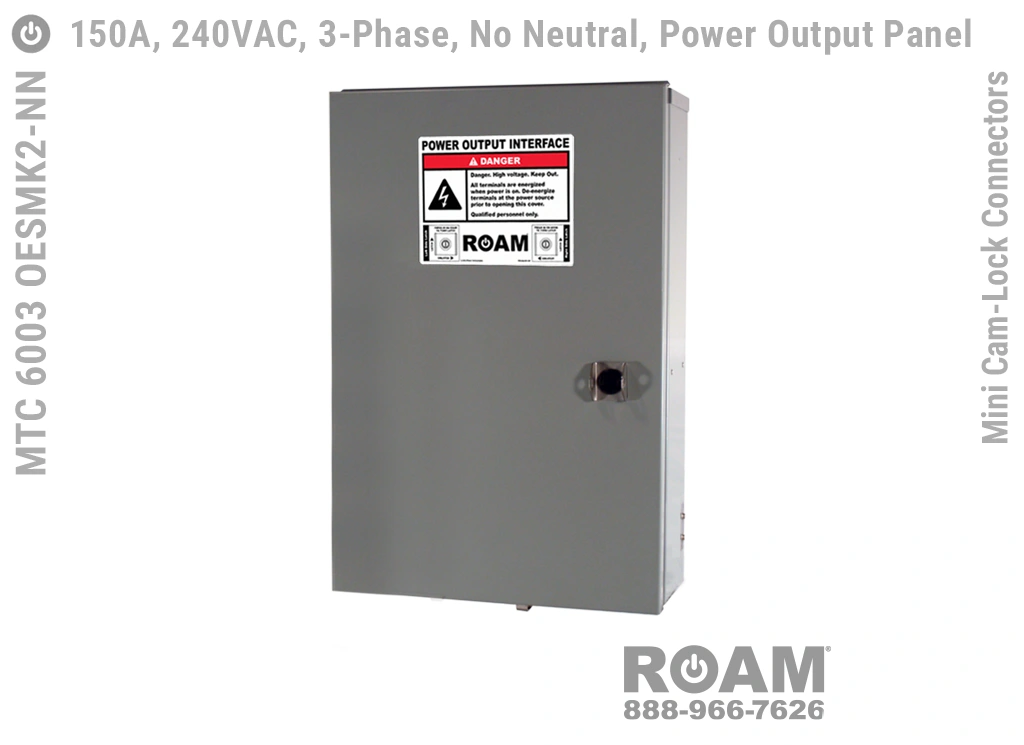

MTC 6003 OESMK2-NN - 150A/240VAC

Three-Phase - Power Output Panel

No Neutral - Closed

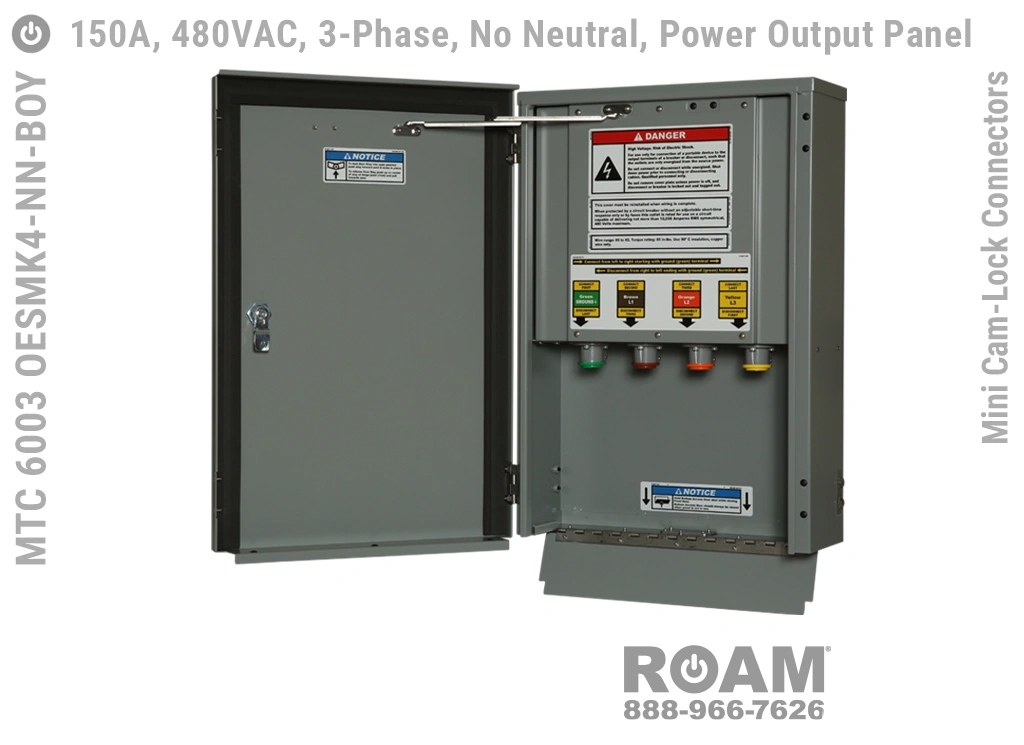

MTC 6003 OESMK4-NN-BOY - 150A/480VAC

Three-Phase - Power Output Panel

No Neutral - Open

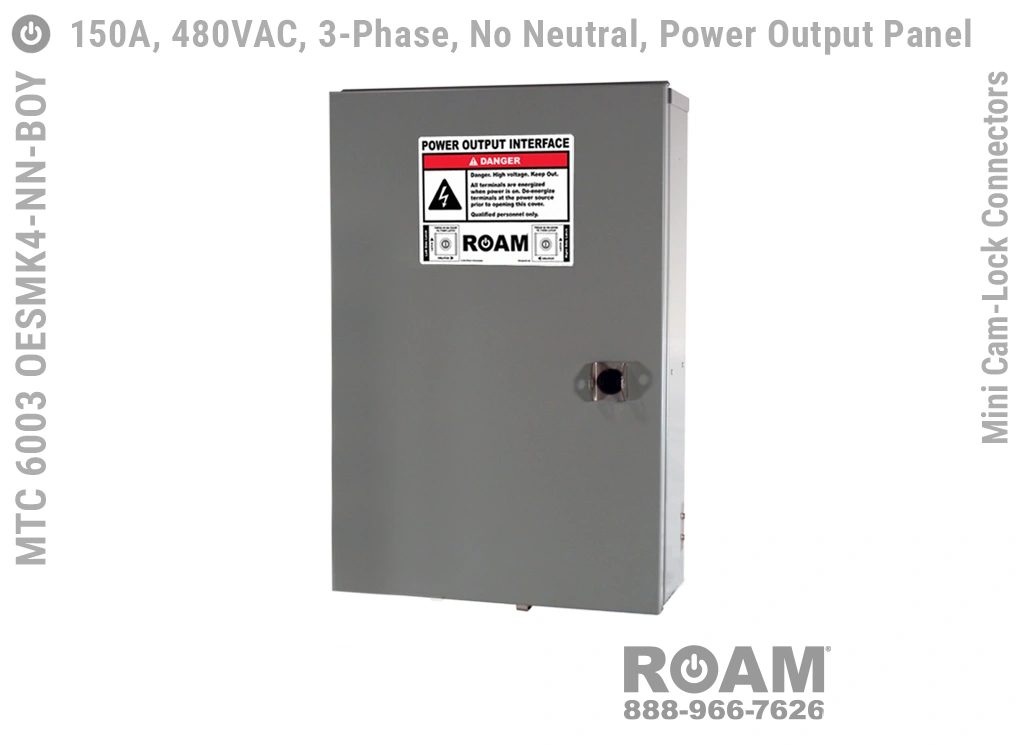

MTC 6003 OESMK4-NN-BOY - 150A/480VAC

Three-Phase - Power Output Panel

No Neutral - Closed

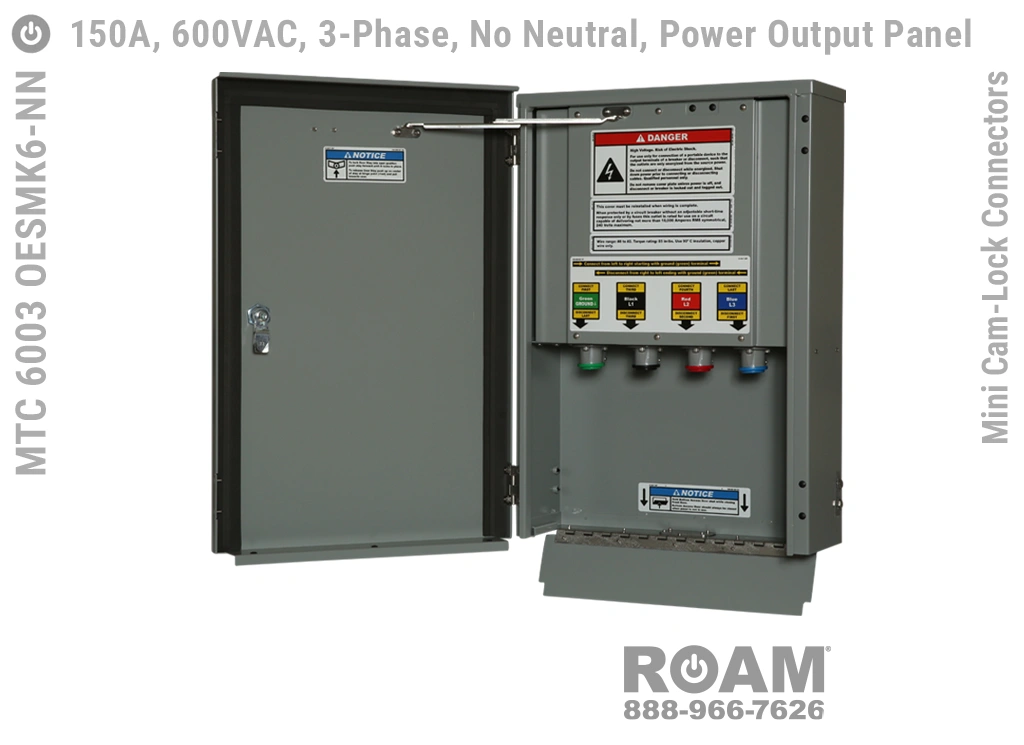

MTC 6003 OESMK6-NN - 150A/600VAC

Three-Phase - Power Output Panel

No Neutral - Open

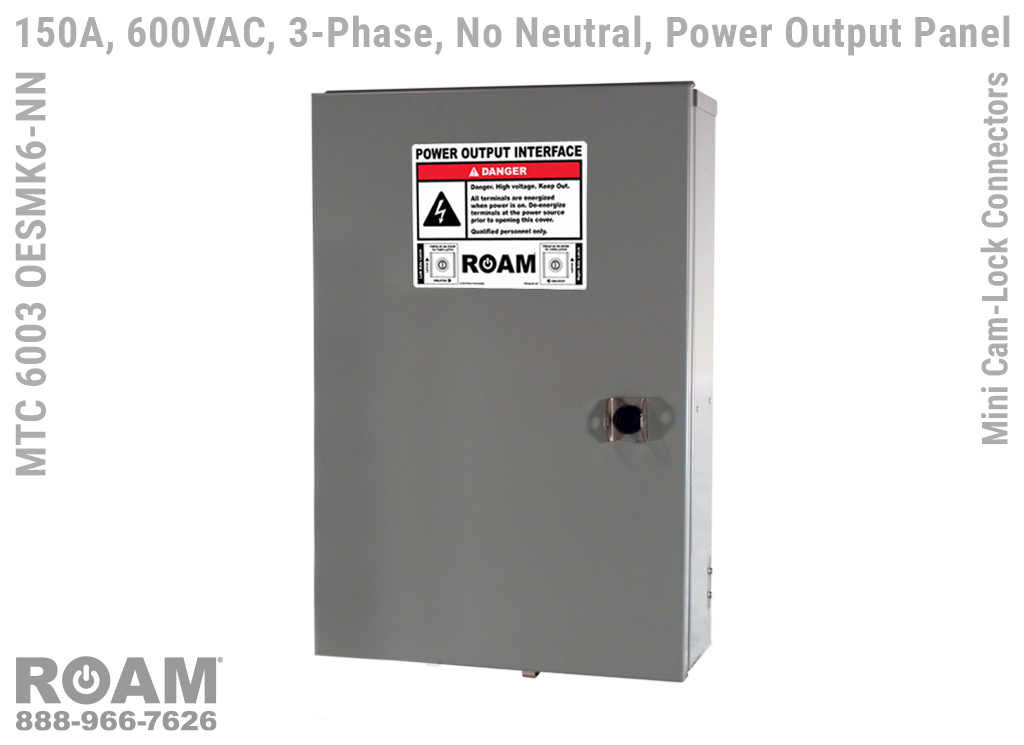

MTC 6003 OESMK6-NN - 150A/600VAC

Three-Phase - Power Output Panel

No Neutral - Closed

Model Numbers & Options

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).

UL 891 Listed—US & Canada
