Power Input Panel

Three-Phase 150A Mini Cam-Lock

MTC 6003 IESMKv

Roam's MTC® 6003 IESMKv Mini Cam-Lock series ("v" = Voltage Code) of Power Input Panels provides a rugged and cost-effective exterior connection point temporary power input to trailers, buses, or temporary structures.



Roam's line of Mini Cam-Lock panels offer a lower power alternative to our standard 16 Series Cam-Lock panels. The Mini Cam-Lock panels support up to 150A using Marinco* brand 15 Series Cam-Lock connectors. Note that Mini Cam-Lock connectors are smaller than and not compatible with 16 Series standard Cam-Lock connectors. Applications include power input for industrial use, entertainment, and concession trailers. These panels are made with Spring Cap covers for the connectors (to protect against dust or insects).


Roam's Mini Cam-Lock based line of Power Input Boxes makes connecting a temporary power input to line power output from a building (or other structure) to your site fast, easy, and most importantly—safe. Such units are also known in the industry as as Tap Boxes or Inlet Boxes.

• Corrosion-resistant powder coating
• Built to NEMA 3R standard
• UV-resistant four color labels
• Internal and external ground points
• Marinco Cam-Lock 15-series connectors
• Color coded spring caps for cam-locks
• Brown-Orange-Yellow connectors for 480VAC

• 150A rated Male Mini Cam-Lock connectors
• Three-phase power, up to 150A
• 240 VAC, 480 VAC, & 600 VAC Rated Panels
• Spot-welded Galvanneal steel construction
• Wireway receptacles accept #8–#2 AWG wire
• Connector plugs accept #8–#2 AWG wire
• Custom labels & configurations available

MTC 6003 IESMK2
MTC 6003 IESMK2 - 150A/240VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - Mini Cam-Lock Front View - Open - Three-Phase - Power Input Interface Box - 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - Door Open - Showing 15-Series Male Mini Cam-Lock Connectors - MTC 6003 IESMK2

MTC 6003 IESMK2 - 150A/240VAC

Three-Phase - Power Input Panel - Open

MTC 6003 IESMK2
MTC 6003 IESMK2 - 150A/240VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - Mini Cam-Lock Front View - Closed - Three-Phase - Power Input Interface Box - 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - Door Closed - Showing 15-Series Male Mini Cam-Lock Connectors - MTC 6003 IESMK2

MTC 6003 IESMK2 - 150A/240VAC

Three-Phase - Power Input Panel - Closed

Connections

Roam's MTC 6003 IESMKv Power Input Boxes accept from #8 to #2 (AWG) cables via Mini Cam-Lock plugs on the generator cable side, and from #8 to #2 (AWG) cables on the internal wireway side.

Voltages up to 600VAC

Roam offers the MTC 6003 IESMKv Power Input Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6003 IESMK2, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 IESMK4-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6003 IESMK6. Brown-Orange-Yellow color coding (for labels, Mini Cam-Locks, & Spring Caps) is normally used for most 480 VAC applications.

MTC 6003 IESMK4-BOY
MTC 6003 IESMK4B-BOY - 150A/480VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - Mini Cam-Lock Front View - Open - Three-Phase - Power Input Interface Box - 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - Door Open - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK4B-BOY

MTC 6003 IESMK4-BOY - 150A/480VAC

Three-Phase - Power Input Panel - Open

MTC 6003 IESMK4-BOY
MTC 6003 IESMK4-BOY - 150A/480VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - Mini Cam-Lock Front View - Closed - Three-Phase - Power Input Interface Box - 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - Door Closed - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK4-BOY

MTC 6003 IESMK4-BOY - 150A/480VAC

Three-Phase - Power Input Panel - Closed

MTC 6003 IESMK6
MTC 6003 IESMK6 - 150A/600VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - Mini Cam-Lock Front View - Open - Three-Phase - Power Input Interface Box - 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - Door Open - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK6

MTC 6003 IESMK6 - 150A/600VAC

Three-Phase - Power Input Panel - Open

MTC 6003 IESMK6
MTC 6003 IESMK6 - 150A/600VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - Mini Cam-Lock Front View - Closed - Three-Phase - Power Input Interface Box - 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - Door Closed - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK6

MTC 6003 IESMK6 - 150A/600VAC

Three-Phase - Power Input Panel - Closed

Canadian Color Coding Available

Any Roam panels normally color coded (for Mini Cam-Locks, Spring Caps, and Labels) as L1=Black, L2=Red, & L3=Blue, are also available in the typical Canadian color coding format of L1=Red, L2=Black, & L3=Blue. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If you are connecting the Power Input Panel to a power source that uses the US color coding (L1 = Black, L2 = Red, L3 = Blue), then you will likely want the standard US color coding (so long as local electrical codes allow).

No Neutral Options Available

Roam's 150A Mini Cam-Lock Power Input Panels (Boxes) can also be ordered with no neutral connection for sites and generator configurations designed for just Ground, L1, L2, and L3 cables. To order a panel without a neutral connector just add a "-NN" to the end of the Model Number. The "No Neutral" panels use only four Mini Cam-Lock connectors.

MTC 6003 IESMK2-NN
MTC 6003 IESMK2-NN - 150A/240VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - No Neutral - Mini Cam-Lock Front View - Open - Three-Phase - Power Input Interface Box - 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - Door Open - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK2-NN

MTC 6003 IESMK2-NN - 150A/240VAC

Three-Phase - Power Input Panel

No Neutral - Open

MTC 6003 IESMK2-NN
MTC 6003 IESMK2-NN - 150A/240VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - No Neutral - Mini Cam-Lock Front View - Closed - Three-Phase - Power Input Interface Box - 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - Door Closed - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK2-NN

MTC 6003 IESMK2-NN - 150A/240VAC

Three-Phase - Power Input Panel

No Neutral - Closed

MTC 6003 IESMK4-NN-BOY
MTC 6003 IESMK4-NN-BOY - 150A/480VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - No Neutral - Mini Cam-Lock Front View - Open - Three-Phase - Power Input Interface Box - 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - Door Open - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK4-NN-BOY

MTC 6003 IESMK4-NN-BOY - 150A/480VAC

Three-Phase - Power Input Panel

No Neutral - Open

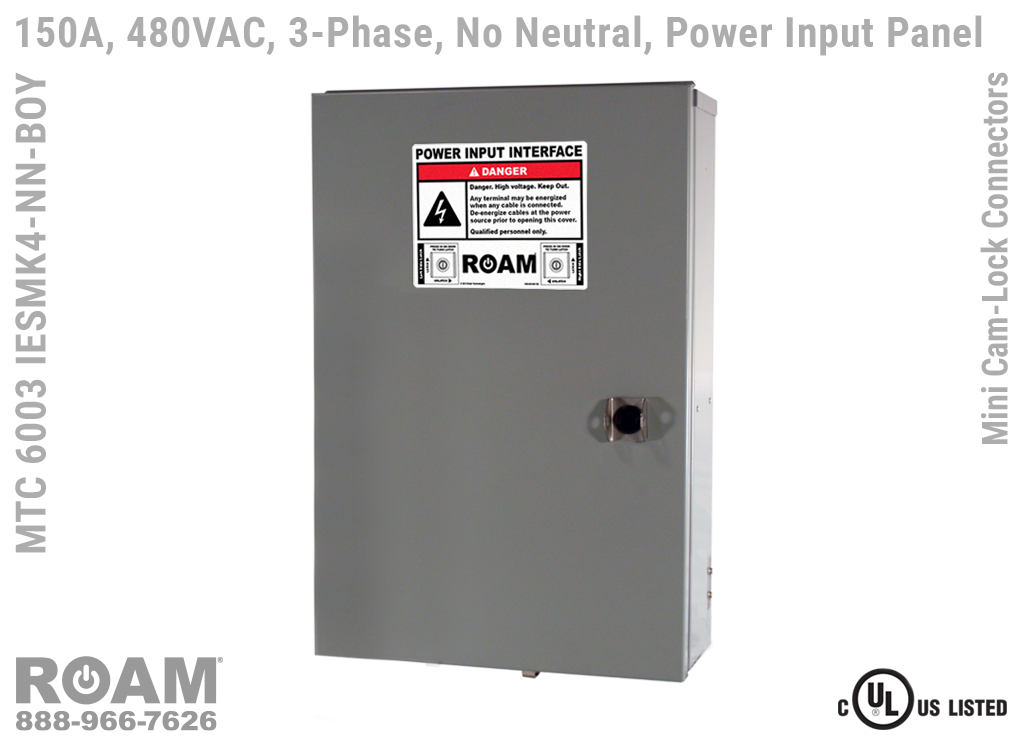

MTC 6003 IESMK4-NN-BOY
MTC 6003 IESMK4-NN-BOY - 150A/480VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - No Neutral - Mini Cam-Lock Front View - Closed - Three-Phase - Power Input Interface Box - 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - Door Closed - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK4-NN-BOY

MTC 6003 IESMK4-NN-BOY - 150A/480VAC

Three-Phase - Power Input Panel

No Neutral - Closed

MTC 6003 IESMK6-NN
MTC 6003 IESMK6-NN - 150A/600VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - No Neutral - Mini Cam-Lock Front View - Open - Three-Phase - Power Input Interface Box - 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - Door Open - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK6-NN

MTC 6003 IESMK6-NN - 150A/600VAC

Three-Phase - Power Input Panel

No Neutral - Open

MTC 6003 IESMK6-NN
MTC 6003 IESMK6-NN - 150A/600VAC - 3-Phase - Power Input Panel - Connection Panel - Tap Box - Docking Station - No Neutral - Mini Cam-Lock Front View - Closed - Three-Phase - Power Input Interface Box - 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - Door Closed - Showing 15-Series Male Mini Cam-Lock Connectors - MTC6003IESMK6-NN

MTC 6003 IESMK6-NN - 150A/600VAC

Three-Phase - Power Input Panel

No Neutral - Closed

Model Numbers & Options

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).
