Power Output Panel

Single-Phase 800A
MTC 6001 OES8KvB

Supporting up to 800 Amps, Roam's MTC® 6001 OES8KvB series ("v" = Voltage Code) of Power Output Panels provides a rugged and cost-effective, exterior connection point for high-capacity external power loads. Roam's 800A Power Output Panels use E1016 (J-Series/16 Series) Female Cam-Lok* connectors in two rows of 400A (max) connectors bus-barred together allows the panel to support up to 800A.

The standard in safety and outdoor reliability, Roam's line of Power Output Panels makes connecting building (line) power to external or internal loads fast, easy, and most importantly—safe.



Like the rest of Roam's line of Power Output Panels (also known as Outlet Panels, Docking Stations, or Tap Boxes), the MTC 6001 OES8KvB series offers a safe, secure power output connection point for external loads such as lighting, mobile equipment, booths, test load banks, or entertainment venue power. The MTC 6001 OES8KvB line is part of Roam's UL Listed (US & Canada) MTC 6003 series of single-phase Power Output Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok* brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.

• Corrosion-resistant powder coating
• UV-resistant four color labels
• Built to NEMA 3R standard
• Internal and external grounding studs
• Eight Female E1016 Cam-Lok connectors

• Single-phase power, at up to 800 Amps
• 240 VAC, 480 VAC, & 600 VAC rated panels
• Spot-welded Aluminum construction
• Custom labels & configurations available
• Brown-Orange-Yellow connectors at 480VAC

MTC 6001 OES8K2B

MTC 6001 OES8K2B - 800A/240VAC

Single-Phase - Power Output Panel - Open

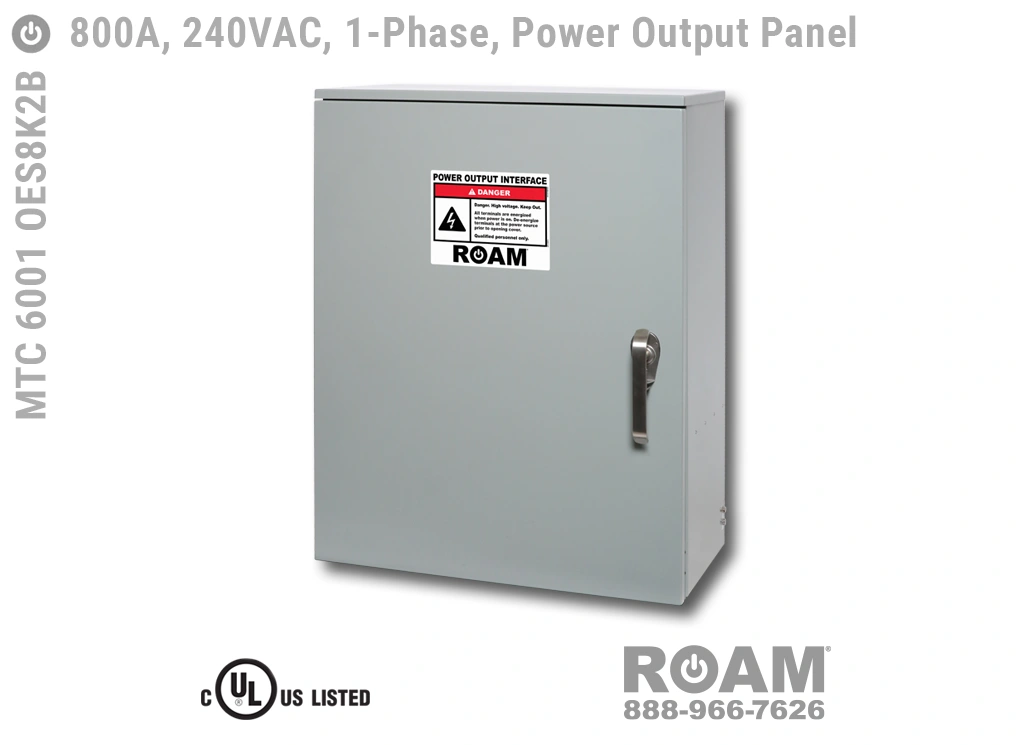

MTC 6001 OES8K2B

MTC 6001 OES8K2B - 800A/240VAC

Single-Phase - Power Output Panel - Closed

Connections

Roam's MTC 6001 OES8KvB 800 Amp Power Output Panels accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the output cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars.

Voltages up to 600VAC

Roam offers the MTC 6001 OES8KvB Power Output Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 OES8K2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6003 OES8K4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 OES8K6B. All of the 800A panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

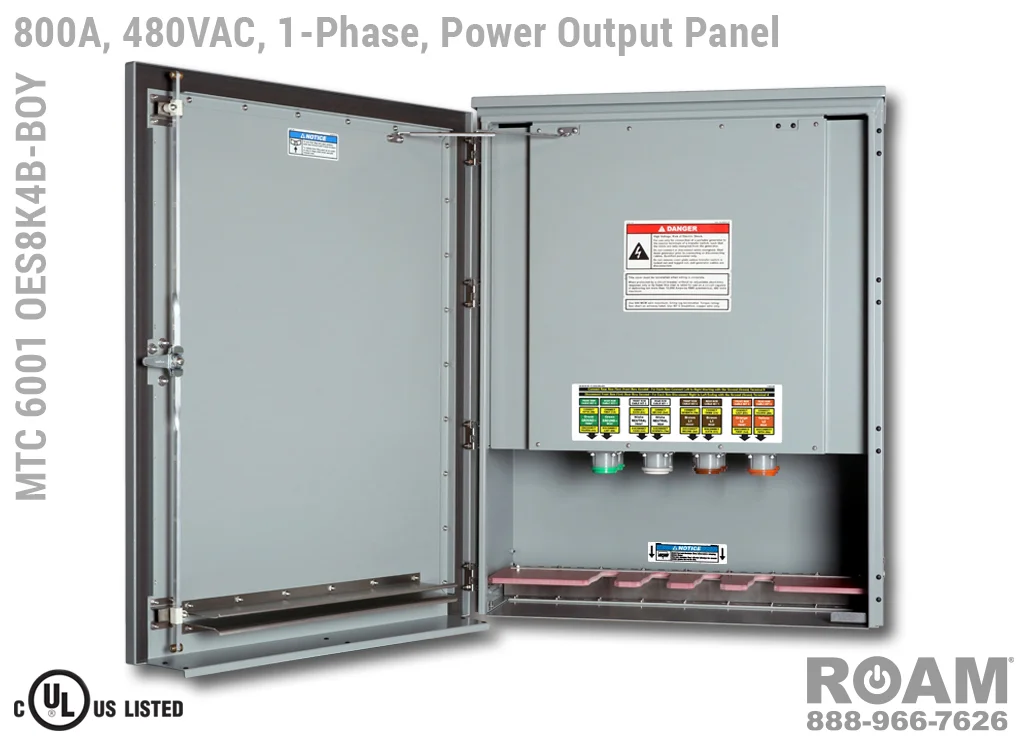

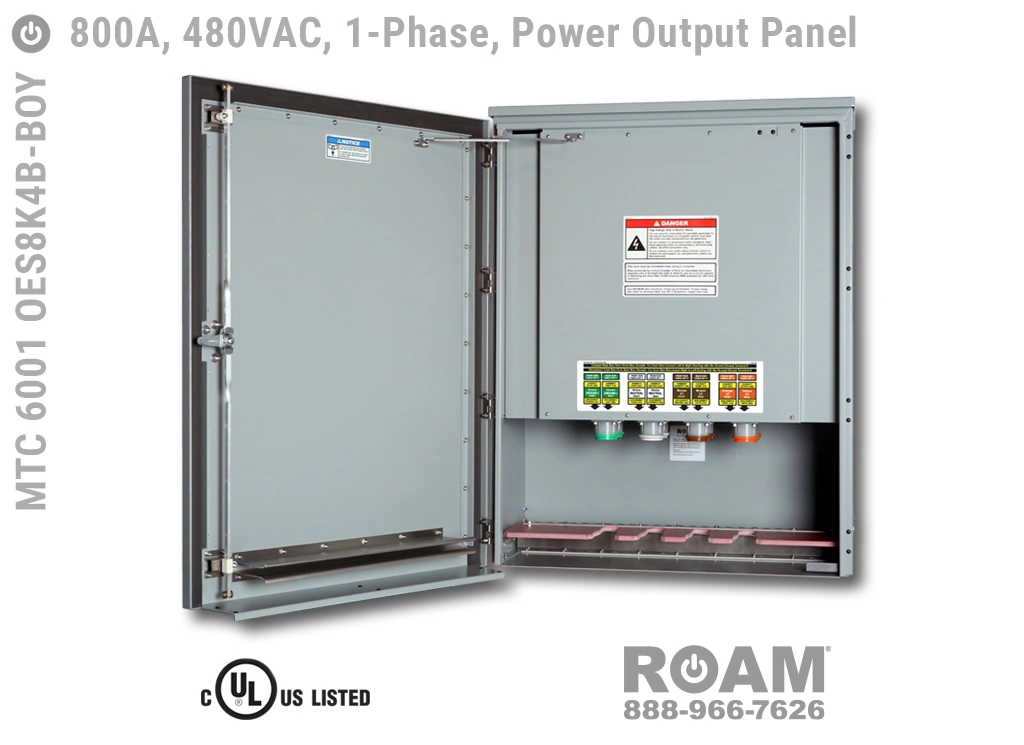

MTC 6001 OES8K4B-BOY

MTC 6001 OES8K4B-BOY - 800A/480VAC

Single-Phase - Power Output Panel - Open

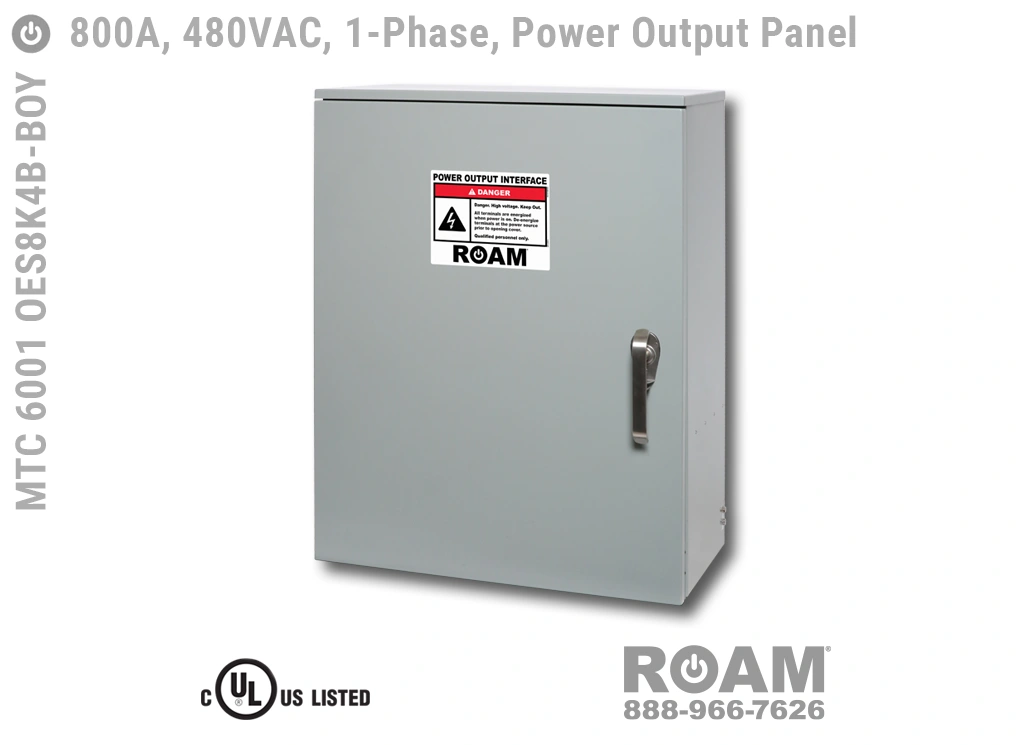

MTC 6001 OES8K4B-BOY

MTC 6001 OES8K4B-BOY - 800A/480VAC

Single-Phase - Power Output Panel - Closed

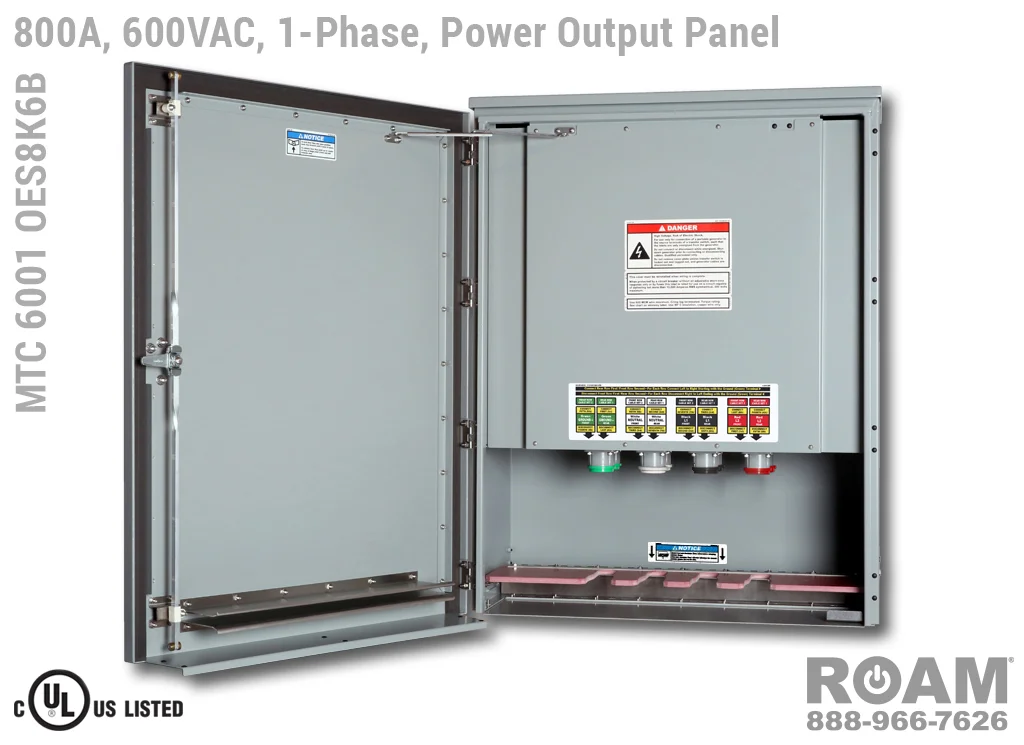

MTC 6001 OES8K6B

MTC 6001 OES8K6B - 800A/600VAC

Single-Phase - Power Output Panel - Open

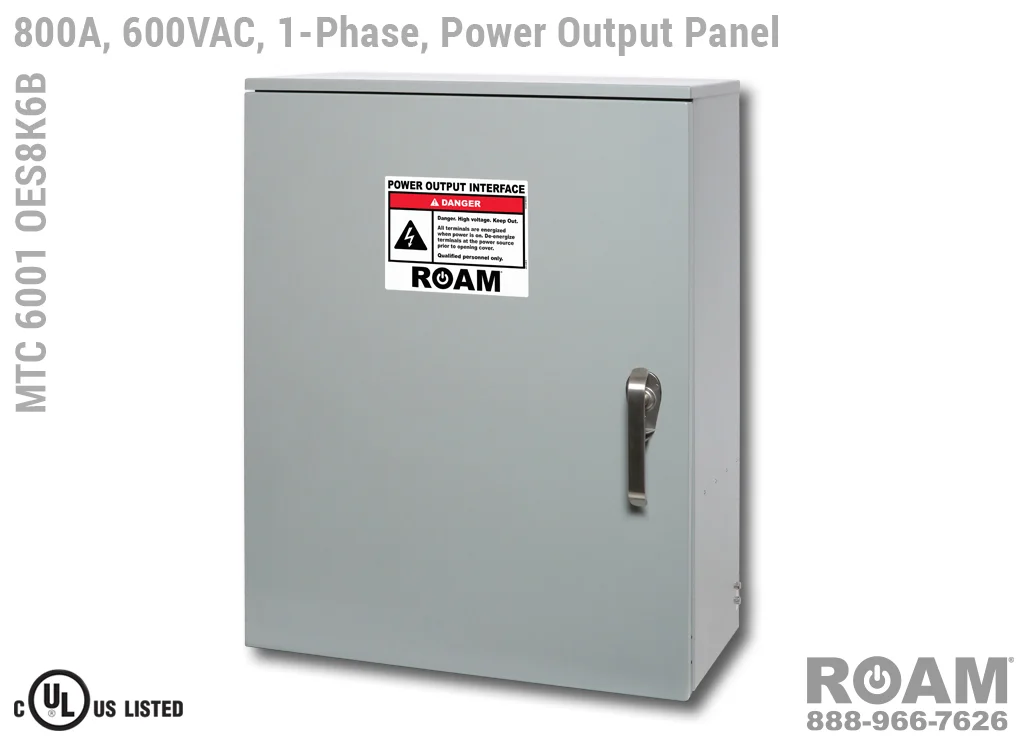

MTC 6001 OES8K6B

MTC 6001 OES8K6B - 800A/600VAC

Single-Phase - Power Output Panel - Closed

Canadian Color Coding Available

Any Roam panels with power connectors normally color coded (for Cam-Locks, Spring Caps, and Labels) as L1=Black & L2=Red, are also available in the typical Canadian color coding format of L1=Red & L2=Black. If you need to order a unit with the Canadian color scheme, just add a "-CAN" to the end of the Model Number. If the loads you are connecting the Power Output Panel to use the US color coding (L1 = Black & L2 = Red), then you may want the standard US color coding (so long as local electrical codes allow).

Model Numbers & Options

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).


UL 891 Listed—US & Canada
