Power Input Panel - Tap Box - Inlet Box
Single-Phase 600A
MTC 6001 IES6KvB

Supporting up to 600 Amps, Roam's MTC® 6001 IES6KvB series ("v" = Voltage Code) of Power Input Panels provides a rugged and cost-effective, exterior connection point for temporary power input to trailers, buses, or temporary structures. Roam's 600A Power Input Panels use E1016 (J-Series/16 Series) Male Cam-Lok* brand connectors in two rows of 400A (max) connectors bus-barred together allows the panel to support up to 600A.

The standard in safety and outdoor reliability, Roam's line of Power Input Panels (also known as Tap Boxes or Inlet Boxes) makes connecting a temporary power input to line power output from a building fast, easy, and most importantly—safe. The MTC 6001 IES6KvB line is part of Roam's UL Listed (US & Canada) series of single-phase Power Input Panels. Roam uses genuine Cooper Crouse-Hinds Cam-Lok* brand connectors. Similar compatible connectors are sometimes referred to as "Cam-Lock" connectors by their manufacturers, distributors, and/or users.

  • Corrosion-resistant powder coating
  • UV-resistant four color labels
  • Built to NEMA 3R standard
  • Internal and external grounding studs
  • Eight Crouse-Hinds E1016 Cam-Lok connectors
  • Single-phase power
  • 240 VAC, 480 VAC, & 600 VAC rated panels
  • Spot-welded Aluminum construction
  • Custom labels & configurations available
  • Brown-Orange-Yellow connectors at 480VAC

Roam's 600A Power Input Panels are functionally identical to our 800A (max) Power Input Panels (docking stations). The maximum amperage that the Series-16 Cam-Lock connectors can handle is 400A each, so any panel that needs to support over 400A and up to 800A must use two rows of Cam-Lock connectors that are bus-barred together.

MTC 6001 IES6K2B
Roam MTC 6001 IES6K2B - Power Input Panel - Single-Phase - Door Open - Supports Up to to 600A - 600 Amps - Supports Up to 600MCM Cable - Bus-Barred - Supports 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - E1016 (J-Series/16-Series) Male Cam-Lok Connectors - MTC6001IES6K2B - Cam-Lock - Tap Box - Docking Station - Connection Panel - Connector Panel - 1-Phase - UL/cUL Listed

MTC 6001 IES6K2B - 600A/240VAC

Single-Phase - Power Input Panel - Open/240VAC

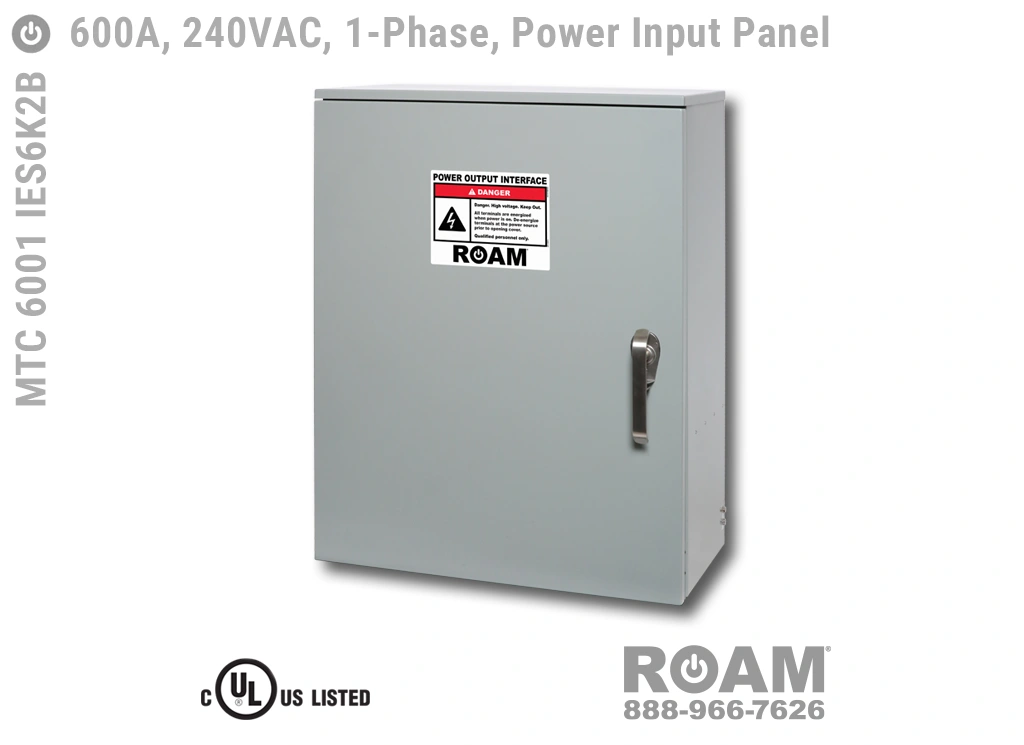

MTC 6001 IES6K2B
Roam MTC 6001 IES6K2B - Power Input Panel - Single-Phase - Door Closed - Supports Up to to 600A - 600 Amps - Supports Up to 600MCM Cable - Bus-Barred - Supports 120VAC, 208VAC, 230VAC, & 240VAC - 240v (120v, 208v, 230v, & 240v) - E1016 (J-Series/16-Series) Male Cam-Lok Connectors - MTC6001IES6K2B - Cam-Lock - Tap Box - Docking Station - Connection Panel - Connector Panel - 1-Phase - UL/cUL Listed

MTC 6001 IES6K2B - 600A/240VAC

Single-Phase - Power Input Panel - Closed/240VAC

Connections

Roam's MTC 6001 IES6KvB 600A Power Input Boxes accept either #2 to 2/0 or 2/0 to 4/0 cables via Cam-Lock plugs on the generator cable side, and from #2 AWG to 600MCM cables on the internal wireway side. The wireway connection supports up to dual 600MCM cables (via bolted on lugs) on internal bus bars.

Voltages up to 600VAC

Roam offers the MTC 6001 IES6KvB Power Input Panel in models that support up to 240 VAC (120v, 208v, 230v, 240v)—MTC 6001 IES6K2B, up to 480 VAC (277v, 330v, 440v, 480v)—MTC 6001 IES6K4B-BOY, and up to 600 VAC (575v, 577v, 600v)—MTC 6001 IES6K6B. All of the 600A panels are UL Listed and cUL Listed (Canada) at those voltage levels. Brown-Orange-Yellow color coding (for labels, Cam-Locks, & Cam-Lock spring caps) is normally used for most 480 VAC applications.

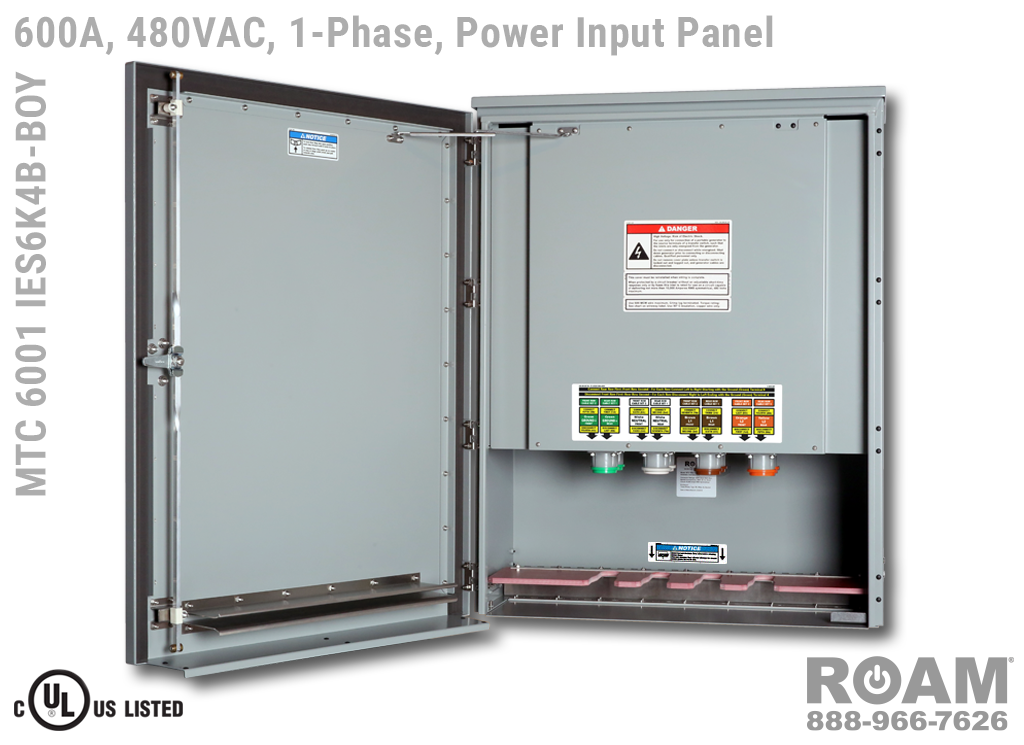

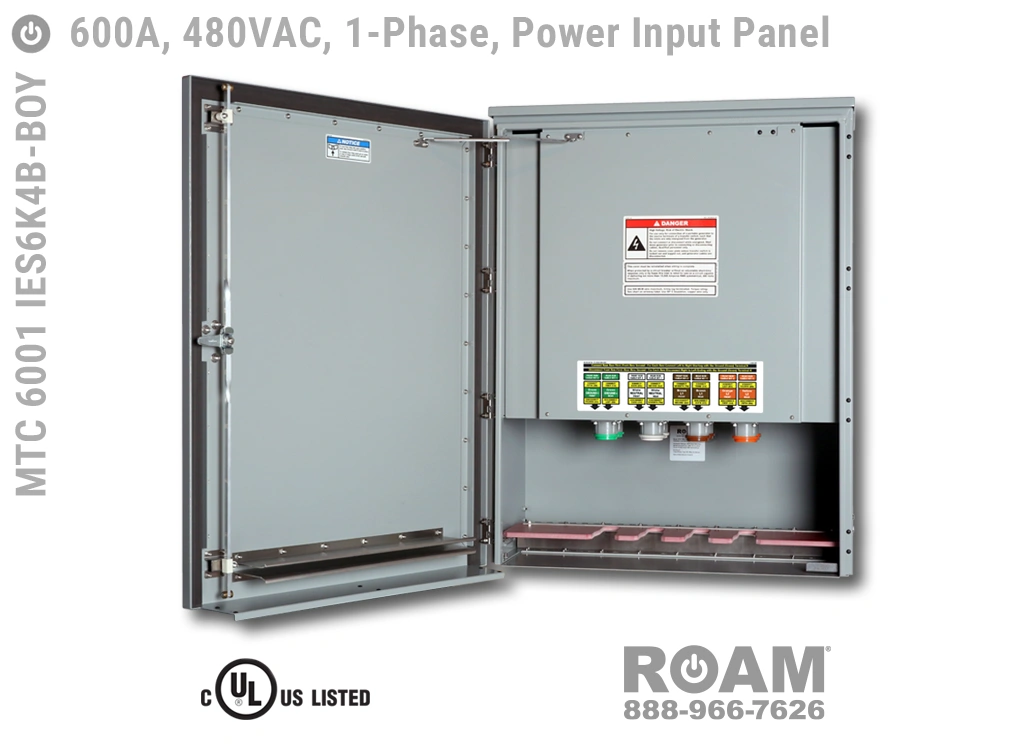

MTC 6001 IES6K4B-BOY
Roam MTC 6001 IES6K4B-BOY - Power Input Panel - Single-Phase - Door Open - Supports Up to to 600A - 600 Amps - Supports Up to 600MCM Cable - Bus-Barred - Supports 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - E1016 (J-Series/16-Series) Male Cam-Lok Connectors - MTC6001IES6K4B-BOY - Cam-Lock - Tap Box - Docking Station - Connection Panel - Connector Panel - 1-Phase - UL/cUL Listed

MTC 6001 IES6K4B-BOY - 600A/480VAC

Single-Phase - Power Input Panel - Open/480VAC

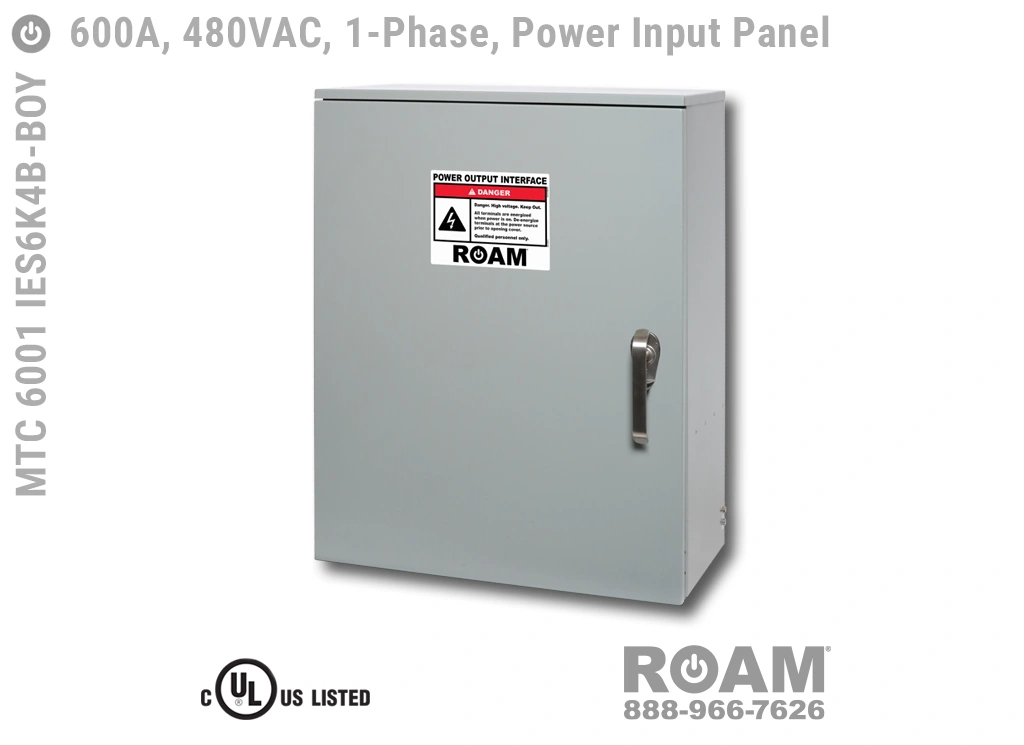

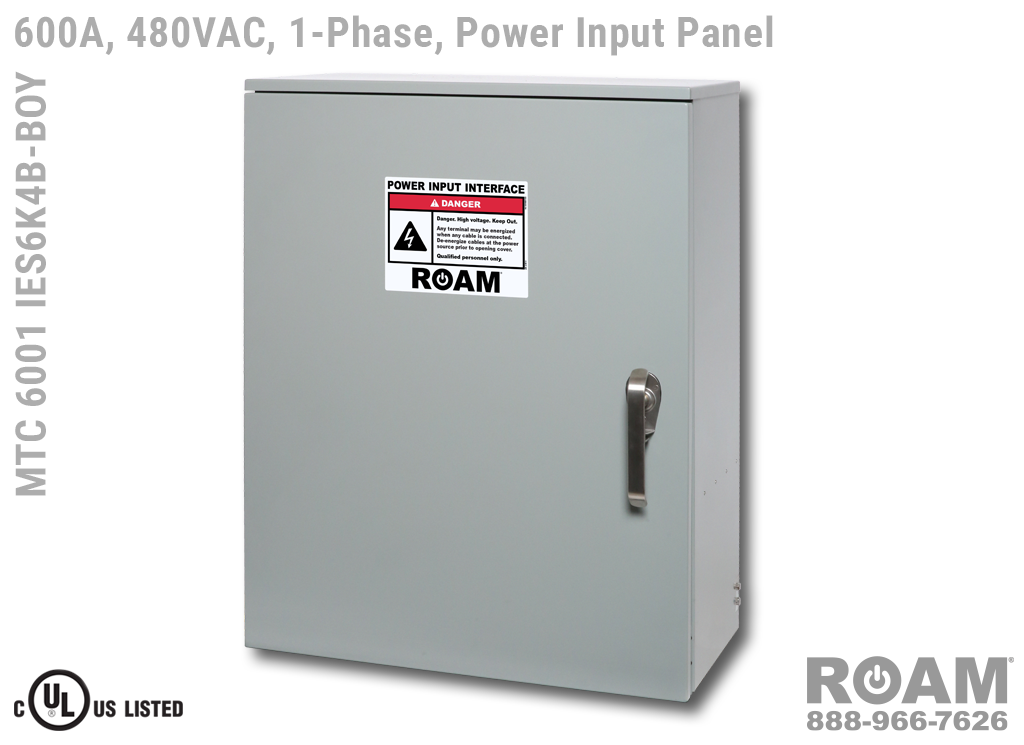

MTC 6001 IES6K4B-BOY
Roam MTC 6001 IES6K4B-BOY - Power Input Panel - Single-Phase - Door Closed - Supports Up to to 600A - 600 Amps - Supports Up to 600MCM Cable - Bus-Barred - Supports 277VAC, 330VAC, 440VAC, & 480VAC - 480v (277v, 330v, 440v, & 480v) - E1016 (J-Series/16-Series) Male Cam-Lok Connectors - MTC6001IES6K4B-BOY - Cam-Lock - Tap Box - Docking Station - Connection Panel - Connector Panel - 1-Phase - UL/cUL Listed

MTC 6001 IES6K4B-BOY - 600A/480VAC

Single-Phase - Power Input Panel - Closed/480VAC

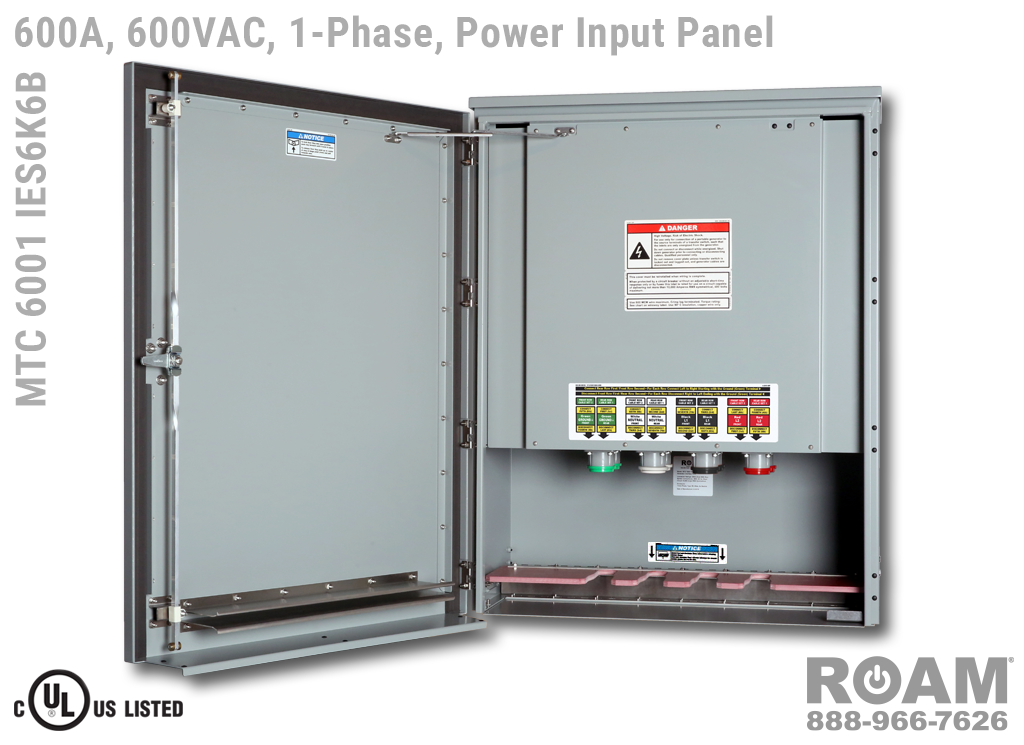

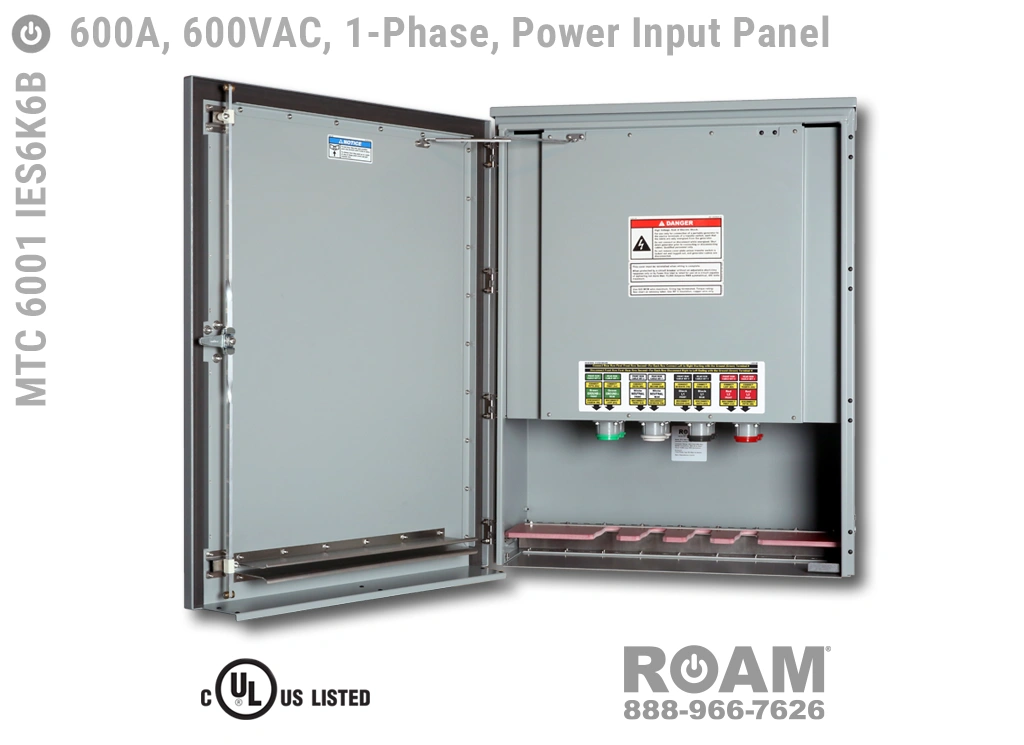

MTC 6001 IES6K6B
Roam MTC 6001 IES6K6B - Power Input Panel - Single-Phase - Door Open - Supports Up to to 600A - 600 Amps - Supports Up to 600MCM Cable - Bus-Barred - Supports 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - E1016 (J-Series/16-Series) Male Cam-Lok Connectors - MTC6001IES6K6B - Cam-Lock - Tap Box - Docking Station - Connection Panel - Connector Panel - 1-Phase - UL/cUL Listed

MTC 6001 IES6K6B - 600A/600VAC

Single-Phase - Power Input Panel - Open/600VAC

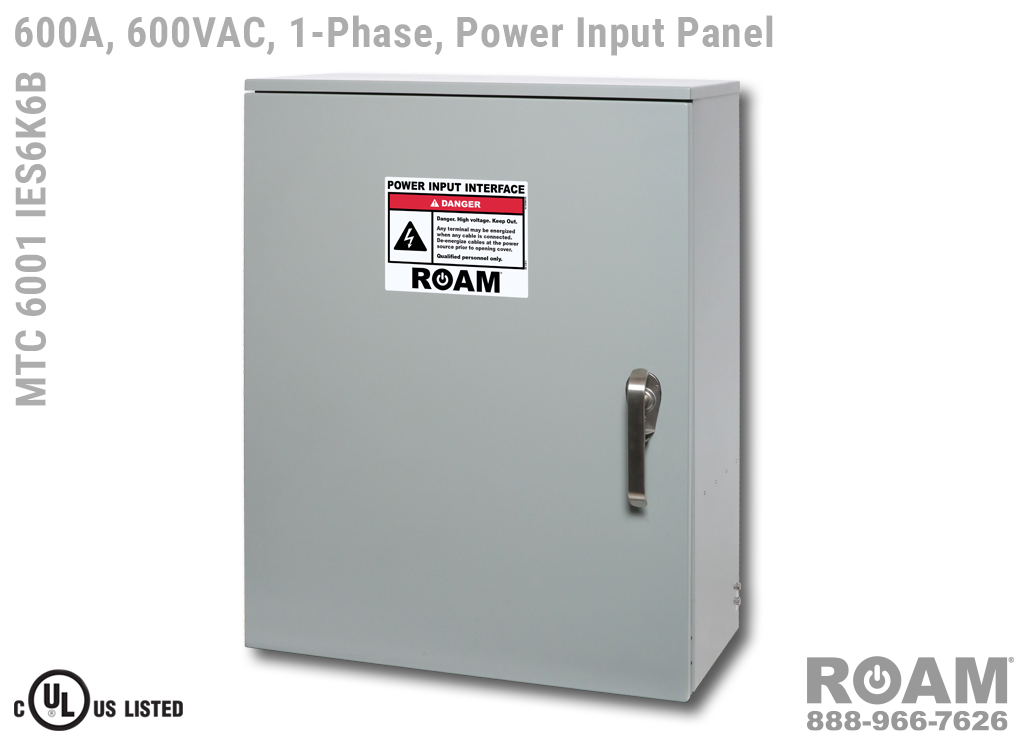

MTC 6001 IES6K6B
Roam MTC 6001 IES6K6B - Power Input Panel - Single-Phase - Door Closed - Supports Up to to 600A - 600 Amps - Supports Up to 600MCM Cable - Bus-Barred - Supports 575VAC, 577VAC, & 600VAC - 600v (575v, 577v, & 600v) - E1016 (J-Series/16-Series) Male Cam-Lok Connectors - MTC6001IES6K6B - Cam-Lock - Tap Box - Docking Station - Connection Panel - Connector Panel - 1-Phase - UL/cUL Listed

MTC 6001 IES6K6B - 600A/600VAC

Single-Phase - Power Input Panel - Closed/600VAC

Synchronization

For all 600A power input panels, it is vital that the panel be fed only from a single generator or power source or from multiple generators or power sources that are synchronized. Do not connect multiple power sources or generators to this panel unless all power inputs have been synchronized. Failure to properly synchronize (phase match and voltage match) inputs from multiple power sources or generators can cause short circuits, severe equipment damage, and and potential injury to operators. Additionally, all power input cables should be of same cable type, conductor material, gauge, and length.

Canadian Color Coding Available

For all 600A power input panels, it is vital that the panel be fed only from a single generator or power source or from multiple generators or power sources that are synchronized. Do not connect multiple power sources or generators to this panel unless all power inputs have been synchronized. Failure to properly synchronize (phase match and voltage match) inputs from multiple power sources or generators can cause short circuits, severe equipment damage, and and potential injury to operators. Additionally, all power input cables should be of same cable type, conductor material, gauge, and length.

Model Numbers & Options

Base Model Number Up to 240VAC Up to 480VAC Up to 600VAC
MTC 6001 IES6KvB MTC 6001 IES6K2B MTC 6001 IES6K4B-BOY MTC 6001 IES6K6B

The "v" in the part number represents a code of either 2 (for up to 240 VAC panels), 4 (for up to 480 VAC panels), or 6 (for up to 600 VAC panels).

UL-cUL Listed Logo

UL 1008 Listed—US & Canada
